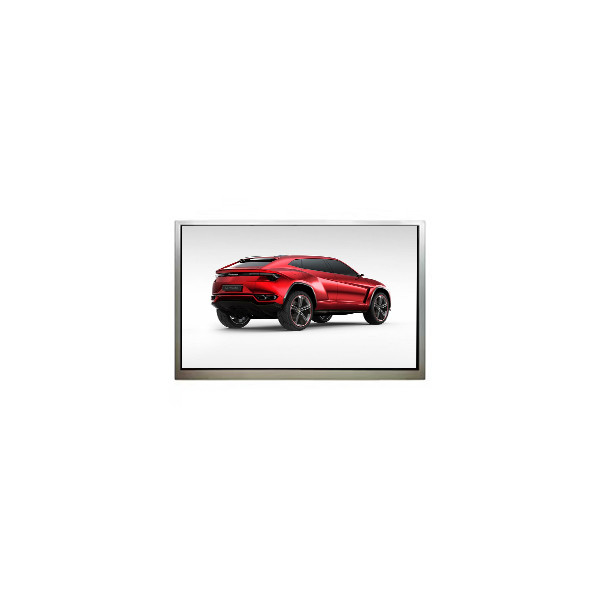

HSD080IDW1-C01-0299 LCD Screen Display Panel 8.0 Inch For Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD080IDW1-C01-0299 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HSD080IDW1-C01-0299 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480, WVGA 116PPI | Active Area: | 176.64(W)×99.36(H) Mm |
| Outline Dim.: | 189.4(W)×114.5(H)×1.43(D) Mm | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Best View On: | 6 O'clock | Designed For: | Automotive Display、Digital Photo Frame、Portable DVD Player |
| Highlight: | TIANMA LCD Screen Display Panel,TM043NBH02 LCD Screen Display Panel |
||
Product Description
HSD080IDW1-C01-0299 LCD Screen Display Panel 8.0 Inch For Automotive Display
Product details :
| Brand | HannStar |
| Model P/N | HSD080IDW1-C01-0299 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOG |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | - |
| Outline Size | 189.4(W)×114.5(H)×1.43(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Glass Depth | - |
| Transmissivity | 5.96% (Typ.)(with Polarizer) |
| Display Colors | 262K/16.2M 50%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COGBuilt-in 2 source + 1 gate chips |
| Panel Weight | - |
| Application | Automotive Display,Digital Photo Frame,Portable DVD Player |
| Signal Interface | TTL (1 ch, 6/8-bit), 60 pins FPC |
| Input Voltage | 3.3/9.7/15.0/-9V (VCC/AVDD/VGH/VHL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.9G (28.4 m/s²) |
Hello , Dear customers, Because there are too many products in our store, we can't upload real pictures to each product...But when shipping , we will delivery the right product to you ; If you want to see the product picture before order , you can contact us .
Affected by the market, the prices of some products often risen, we can not update the prices of products in time. Hope you can understand .
Our advantages:
1: We are all own stock, with adequate supply
2: The quality of the product reached a series of certification
3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.
I firmly believe
We will be your best partner
Ransaction:
• if the buyer cannot find the same product, the buyer can send us the product and model, and we will provide it for you.
• 100% new meaning new product.95% new and 90% new meaning second-hand products,All products good working,tested before shipping.
• After installation, if not working, please contact us as soon as possible, and our engineers will help you solve the problem.
• at the time of delivery, please verify the correctness and completeness of the goods. If the goods are wrong or damaged, please refuse to sign and contact us.
Shipping and Package :
Shipping :
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
FAQ:
Q: Can I pay my order of HSD080IDW1-C01-0299 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD080IDW1-C01-0299 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of HSD080IDW1-C01-0299 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
