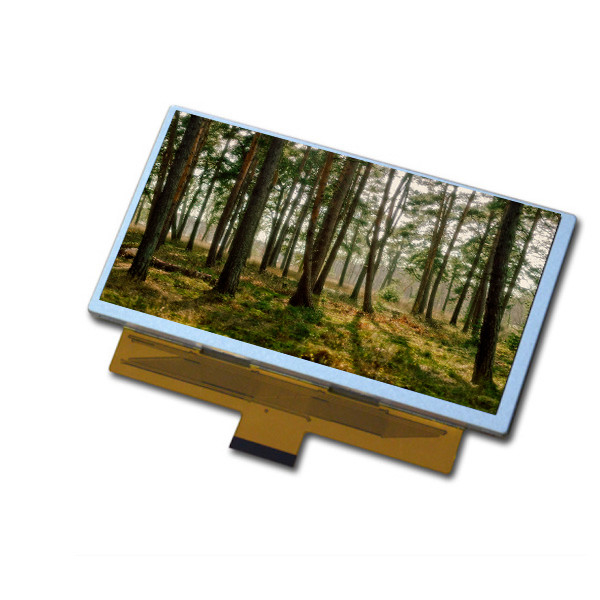

G156BGE-L03 15.6 Inch LCD Panel RGB 1366X768 WXGA 100PPI 500cd/M2 LVDS Input
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | G156BGE-L03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G156BGE-L03 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 (WXGA) 100PPI | Display Area: | 344.232 × 193.536 (H×V) |
| Outline Size: | 363.8 × 215.98 × 9.8 (H×V×D) | Bezel Area: | 347.53 × 196.84 (H×V) |
| Weight: | 720/755g (Typ./Max.) | Used For: | Industrial |
| High Light: | WXGA 15.6 inch LCD panel,G156BGE-L03 15.6 inch LCD panel |
||
Product Description
15.6 inch LCD panel G156BGE-L03 support 1366(RGB)*768 [WXGA] 100PPI 500cd/m lvds input 60HZ LCD screen
Product details :
| Innolux LCD SCREEN G156BGE-L03 | |
| Manufacturer | Innolux |
| Model Name | G156BGE-L03 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 100PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.232 × 193.536 (H×V) |
| Outline(mm) | 363.8 × 215.98 × 9.8 (H×V×D) |
| Bezel Area(mm) | 347.53 × 196.84 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 3/8 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 63% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 720/755g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 60 °C |
| 15.6 inch LCD panel G156BGE-L03 support 1366(RGB)*768 [WXGA] 100PPI 500cd/m lvds input 60HZ LCD screen | |
