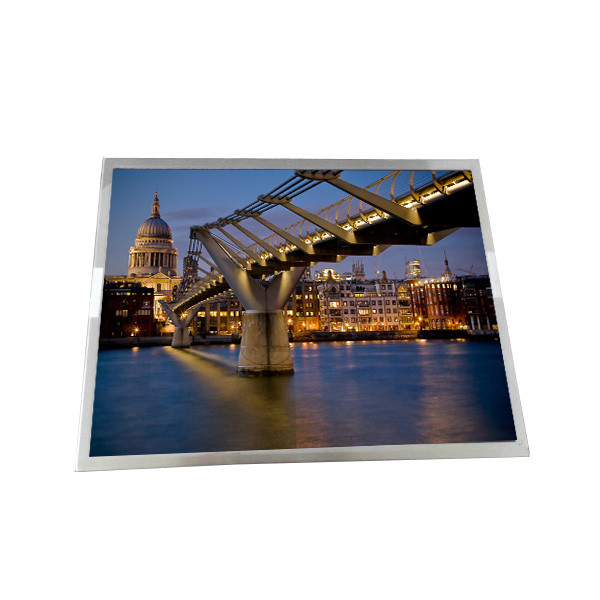

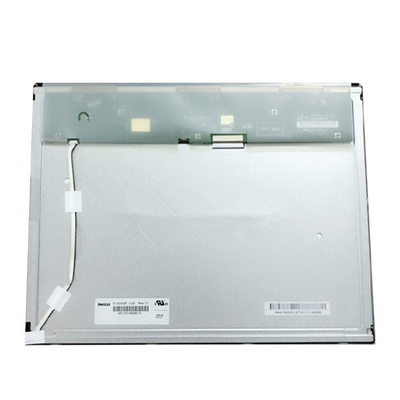

15.0 Inch TFT LCD Screen Module 1024X768 G150XGE-L06 Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | G150XGE-L06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G150XGE-L06 | Panel Size: | 15.0 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 (XGA) 85PPI | Display Area: | 304.128 × 228.096 (H×V) |
| Outline Size: | 326.5 × 253.5 × 12.06 (H×V×D) | Bezel Area: | 307.4 × 231.3 (H×V) |
| Weight: | 1.04/1.09Kgs (Typ./Max.) | Used For: | Industrial |
| High Light: | 15.0 Inch TFT LCD screen module,G150XGE-L06 TFT LCD screen module,XGA TFT LCD display panel |
||
Product Description
1024*768 G150XGE-L06 tft screen lcd display tft lcd screen module tft lcd display panel
Product details :
| Innolux LCD SCREEN G150XGE-L06 | |
| Manufacturer | Innolux |
| Model Name | G150XGE-L06 |
| Screen Size | 15.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 85PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 304.128 × 228.096 (H×V) |
| Outline(mm) | 326.5 × 253.5 × 12.06 (H×V×D) |
| Bezel Area(mm) | 307.4 × 231.3 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 (Typ.)(cd/m²) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/25/45 (Typ.)(CR≥10) |
| Response | 5/11 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.2M 60% NTSC |
| Backlight | WLED , 30K hours , With LED Driver |
| Mass | 1.04/1.09Kgs (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| 15.0 inch 1024*768 G150XGE-L06 tft screen lcd display tft lcd screen module tft lcd display panel | |
Berfore you order:
★Please check your model and screen size and part number again.
★If you are not sure about the compatibility of this item, please send us the specific model number and photos of your original screen.
★Usually the LCD panel we send will be a compatible model number, it might not exactly the same as model of your original screen .But we can make sure it will fit for the model 100%.(We will inform you in advance whether it is a universal model)
★All the LCD will be tested before shipment.
★For all the problems, Please send us message via AliExpress and we will solve the problem for you immediately.
★Your satisfaction is our goal!
After payment:
After your payment please leave your monitor name and screen model ASAP.Once we got it we ship to you soon.We have to personally confirm your bought is correct screen model.
payment:
Standard payment terms: T/T, L/C.
Online trade assurance order, all is up to you.
More payment terms could be provided.(PAYPAL, WESTERN UNION, or others)
Shipping :
1. Worldwide shipping.
2. Orders will be delivered in 3 working days after receiving full payment.
3. Major express partners: DHL, Fedex, TNT, EMS, Aramex.
4. We are not responsible for any customs duties and additional taxes.
Warranty:
After-sales Service: When order complete,an email will be sent out to confirm the value andshipment methods.Then the shipment tracking number will be shared with email asalways.100% strict inspection and test before shipment. Replace in one week once originaldefective goods found on arrival.Enjoy 1 year free replacement warranty.
FAQ:
Q: How can I trace my order of G150XGE-L06?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of G150XGE-L06 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of G150XGE-L06 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of G150XGE-L06 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
