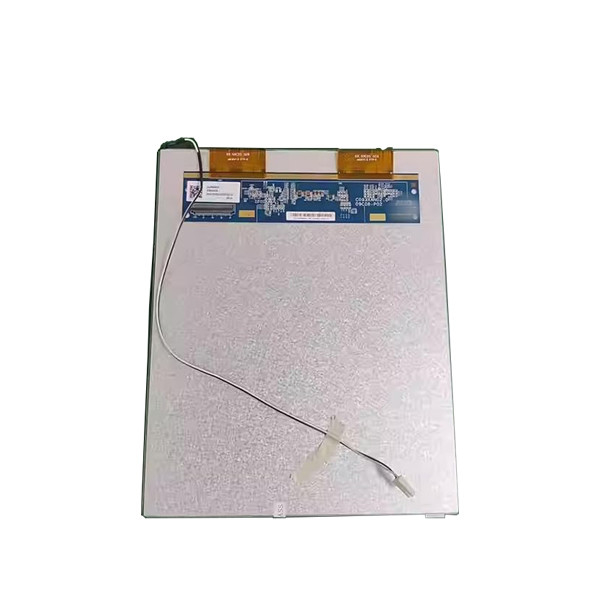

Original 9.3 inch For AUO 820*1024 LCD Screen Display Module Panel C093XAN02.0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C093XAN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | C093XAN02.0 | Diagonal Size: | 9.3" |
|---|---|---|---|
| Pixel Format: | 820(RGB)×1024 141PPI | Active Area: | 147.6(W)×184.32(H) Mm |
| Outline Dim.: | 158.4(W)×196(H)×0.9(D) Mm | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Response: | 20 (Max.)(Tr+Td) Ms | Designed For: | Automotive Display |
| Transmissivity: | 4.57% (Typ.)(with Polarizer) | Color Depth: | 16.7M |
Product Description
Original 9.3 inch For AUO 820*1024 LCD Screen Display Module Panel C093XAN02.0
Product details :
| Brand | AUO |
| Model P/N | C093XAN02.0 |
| Diagonal Size | 9.3" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 820(RGB)×1024 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 147.6(W)×184.32(H) mm |
| Bezel Opening | - |
| Outline Size | 158.4(W)×196(H)×0.9(D) mm |
| Treatment | Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | 20 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Glass Thickness | - |
| Transmissivity | 4.57% (Typ.)(with Polarizer) |
| Color Depth | 16.7M |
| Backlight | No B/L |
| Mass | 62.0g (Typ.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG 4 source chips |
| Signal Type | LVDS (1 ch, 8-bit), 40 pinsConnector |
| Voltage Supply | 3.3/13.5/20/-11V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
Hi, welcome to the YONGS.
Our products are strictly tested before delivery to ensure normal work before delivery, please feel free
Shipping and Package :
Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
Warranty:
Quality assurance is provided.If you feel disappointed with the item,tell us within 7 days of delivery.Items must be returned in original condition for refund/exchange.Shipping cost incurred is on you.We understand the frustrations you might have.We card about each buyer and will do our endeavor to fix any problem in a good business manner.Your satisfaction is always our NO.1 priority.
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
FAQ:
Q: Can you give me a discount if I need a large quantity of C093XAN02.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of C093XAN02.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of C093XAN02.0 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
