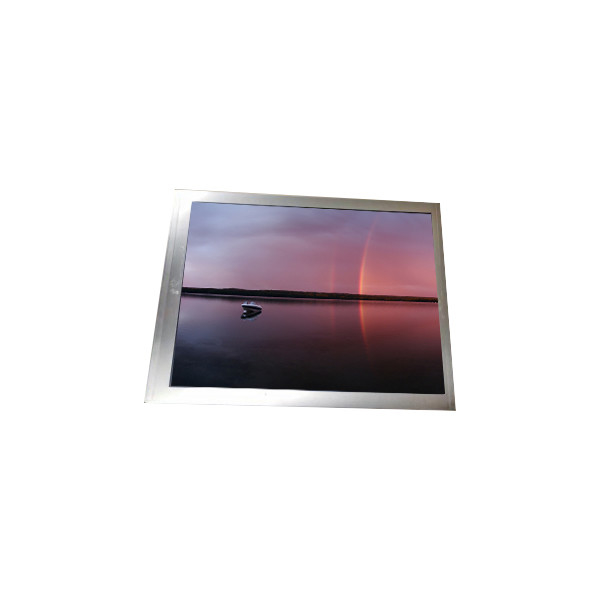

12.3 inch 720*1920 HSD123JPW3-A14 TFT LCD Module for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD123JPW3-A14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | HSD123JPW3-A14 | Panel Size: | 12.3" |
|---|---|---|---|
| Resolution: | 720×1920(RGB) 167PPI | Active Area: | 109.512(W)×292.032(H) Mm |
| Outline Dim.: | 125.4(W)×302(H) ×14.2(D) Mm | Best View On: | Symmetry |
| Support Color: | 16.7M 75% NTSC | Used For: | Industrial ，Outdoor High Brightness ，Automotive Display |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Light Source: | 11S4P WLED , 30K Hours , Without Driver |
Product Description
12.3 inch 720*1920 HSD123JPW3-A14 TFT LCD Module for Industrial
Product details :
| Brand | HannStar |
| Model P/N | HSD123JPW3-A14 |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 720×1920(RGB) 167PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 109.512(W)×292.032(H) mm |
| Bezel Opening | - |
| Outline Dim. | 125.4(W)×302(H) ×14.2(D) mm |
| Treatment | Glare (Haze 0%), Hard coating |
| Luminance | 850 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | HS-IPS Pro, Normally Black, Transmissive |
| Support Color | 16.7M 75% NTSC |
| Light Source | 11S4P WLED , 30K hours , Without Driver |
| Weight | 345g (Typ.) |
| Designed For | Industrial ,Outdoor High Brightness ,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
Before order:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us
After payment:
After your payment please leave your monitor name and screen model ASAP.Once we got it we ship to you soon.We have to personally confirm your bought is correct screen model.
payment:
Standard payment terms: T/T, L/C.
Online trade assurance order, all is up to you.
More payment terms could be provided.(PAYPAL, WESTERN UNION, or others)
Shipping and Package :
Shipping :
1. Worldwide shipping.
2. Orders will be delivered in 3 working days after receiving full payment.
3. Major express partners: DHL, Fedex, TNT, EMS, Aramex.
4. We are not responsible for any customs duties and additional taxes.
Warranty:
After-sales Service: When order complete,an email will be sent out to confirm the value andshipment methods.Then the shipment tracking number will be shared with email asalways.100% strict inspection and test before shipment. Replace in one week once originaldefective goods found on arrival.Enjoy 1 year free replacement warranty.
FAQ:
Q: How do you ship my goods HSD123JPW3-A14 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of HSD123JPW3-A14 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel HSD123JPW3-A14 at a very low value ?
A: Yes , we can . pls inform us before shipping .
