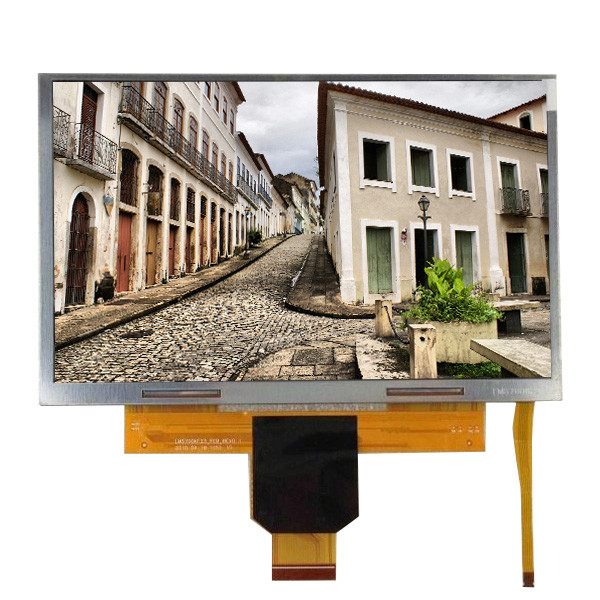

800(RGB)×480 7.0 inch lcd screen tft lcd module panel display lcd LMS700KF15
Product Details:
| Place of Origin: | China |
| Brand Name: | SAMSUNG |
| Model Number: | LMS700KF15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LMS700KF15 | Diagonal Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 [WVGA] 133PPI | Active Area: | 152.4(H)×91.44(V) Mm |
| Outline Dim.: | 163.2(H)×104(V) ×3.6(D) Mm | Bezel Area: | 154.95(H)×93.89(V) Mm |
| Weight: | 110g (Typ.) | Designed For: | Automotive Display / Digital Photo Frame / Portable DVD Player / Video Door Phone / VOIP Phone |
Product Description
800(RGB)×480 7.0 inch lcd screen tft lcd module panel display lcd LMS700KF15
Product details :
| SAMSUNG LCD SCREEN LMS700KF15 | |
| Manufacturer | SAMSUNG |
| Model Name | LMS700KF15 |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Outline(mm) | 163.2 × 104 × 3.6 (H×V×D) |
| Bezel Area(mm) | 154.95 × 93.89 (H×V) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/70 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, TMR |
| Color Depth | 16.2M 50% NTSC |
| Backlight | 8S3P WLED , No Driver |
| Mass | 110g (Typ.) |
| Used for | Automotive Display / Digital Photo Frame / Portable DVD Player / Video Door Phone / VOIP Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit) , FPC 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C |
| 800(RGB)×480 7.0 inch lcd screen tft lcd module panel display lcd LMS700KF15 | |
Payment:
We accept Escrow ,Credit Card , Paypal,and so on
Shipping and Package :
Shipping:
We Ship to Worldwide
In order to ensure that customers can normally install the use of our products
Before shipment, we will detect this product
Most items will ship within 2-4business days on payment received.
Please provide your correct and detailed address and your phone number to ensure the delivery on time. We are not responsible for wrong or undeliverable address.
If you need to change your address, please contact us before you pay.
Our prices do not include any tariffs or other taxes;
If you have any questions please feel free to contact me
NOTE:
1. Please confirm the model number of your LCD Screen when you order our screen.So as not to buy the wrong, can not be used normally.
2.Before you confirming the screen can not work perfectly, please do not use the adhesive to install our screen to your equipment,if the screen paste the glue, we can not accept you to return it and ask for the payment refunding.
3. The problem you may meet:
a.broken screen→ make an unpacking video → contact us and send the video
b. un-working screen→ make a testing video → contact us and send the video
4. If the screen has any problem, please contact us immediately, we will handle it for you soon,thanks for understanding.Looking forward to the long-term cooperation with you!Happy shopping!
FAQ:
Q: How long is the warranty of SAMSUNG LMS700KF15 ?
A: 90 days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd panel SAMSUNG LMS700KF15 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of LMS700KF15 ?
A: we will give you tracking number then you can trace your order form website.
