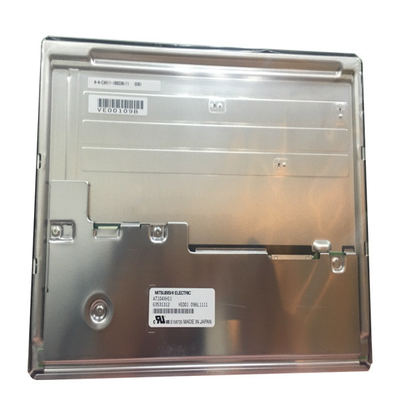

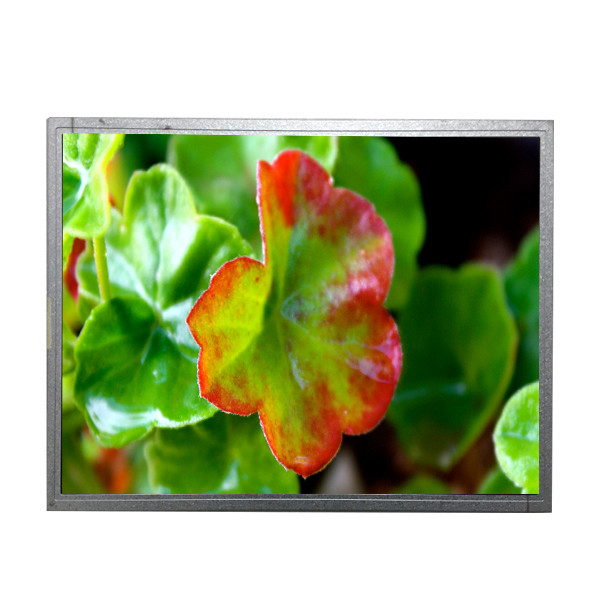

20 pins 10.4 inch tft lcd module AT104XH01 screen 1024×768 lcd screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AT104XH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AT104XH01 | Panel Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 123PPI | Display Area: | 210.4(W)×157.8(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 230.2(W)×180.2(H) Mm |
| Panel Weight: | 610g (Typ.) | Application: | Industrial |
Product Description
20 pins 10.4 inch tft lcd module AT104XH01 screen 1024×768 lcd screen display
Product details :
| Mitsubishi LCD SCREEN AT104XH01 | |
| Manufacturer | Mitsubishi |
| Model Name | AT104XH01 |
| Screen Size | 10.4 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 123PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 210.4 × 157.8 (H×V) |
| Outline(mm) | 230.2 × 180.2 (H×V×D) |
| Bezel Area(mm) | 215.4 × 161.8 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 610g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| 20 pins 10.4 inch tft lcd module AT104XH01 screen 1024×768 lcd screen display | |
Reminder:
1.product information comes from internet,but our pictures are real,we ship your order same as our picture,so please compare our pictures with your desired product,in order to avoid trubble,As return postal costs for an incorrect purchase are at the buyer's expense
2.order will be shipped out in 2-7working days
3.Arrial time:30-60days, or even more.depends on the post service in your country.
If you didn't receive our product within 60 days, hope you can wait a few days more.
4.When you choose: package was send by " China Post Ordinary Small Packet Plus" which is can't track out of China, so hope you could wait for it patiently.thank you!
Shipping and Package :
Shipping:
1.Order will dispatch within 72 working hours once the payment confirmed .we will inform you inmmediately when you purchased the products or colour are not available
2.Comes with pretective plastic film on the screens and safe packing
3.All items can be shipped by DHL ,EMS,China Post Air Mail with trucking No for checking parcel statues online
4.Parcel ship to order payment Destination Adress Only!
5.The extra shipping fees have to be charged if destination address is on the remote Areas’ list,please kindly understand.
6.The order will be declared as low value or Customer requirment to avoid Duty /Tax. Due to International trade policy and slim margins ,please notice our seller are not responsible for any possible duties /local taxes or other customers clearance in time.
7.The parcel will be packed very well before shipping to avoid damage.
Quality & Warranty:
1.Firstly, we got all lcd(touch screen) and all related testing equipment to test and make sure they are good quality, because we know if you get it bad, that will be our problem.
2.Please inform us WITHIN 3 DAYS after receiving the parcel if you are dissatisfied with products (Real picture and other evidence must be given),then we will offer replacement/refund if the products are not as described.
3.If the item is your prossession more than 7 days ,it is considered used /second –hand ,we will Only offer replacement service after we get your return item
FAQ:
Q: Can You declare my order of AT104XH01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of AT104XH01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of AT104XH01 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of AT104XH01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
