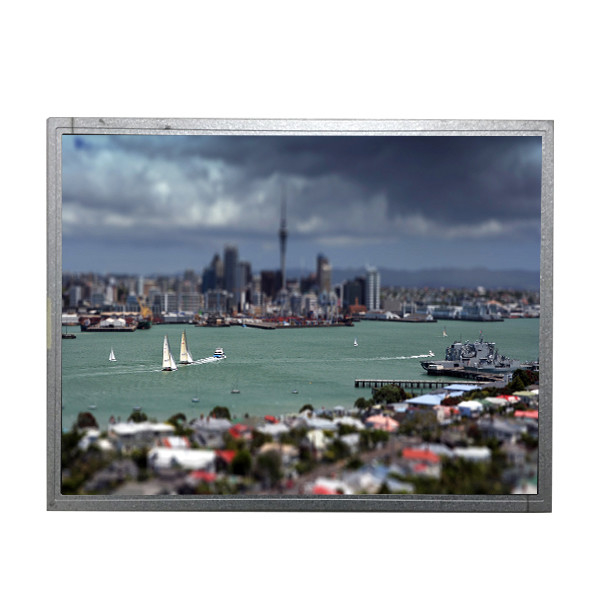

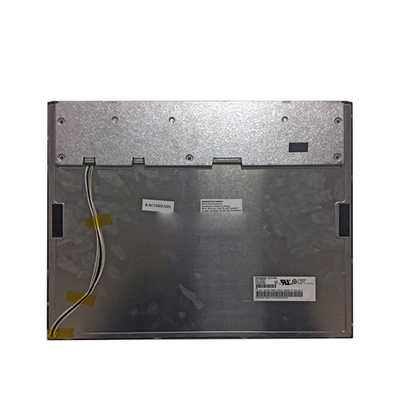

Mitsubishi industrial 15.0 inch lcd panel tft lcd screen AC150XA01 tft lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AC150XA01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AC150XA01 | Diagonal Size: | 15.0 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 85PPI | Active Area: | 304.128(H)×228.096(V) Mm |
| Outline Dim.: | 326.5(H)×253.5(V) Mm | Bezel Area: | 307.4(H)×231.3(V) Mm |
| Weight: | 1.05Kgs (Typ.) | Designed For: | Industrial |
Product Description
Mitsubishi industrial 15.0 inch lcd panel tft lcd screen AC150XA01 tft lcd display
Product details :
| Mitsubishi LCD SCREEN AC150XA01 | |
| Manufacturer | Mitsubishi |
| Model Name | AC150XA01 |
| Screen Size | 15.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 85PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 304.128 × 228.096 (H×V) |
| Outline(mm) | 326.5 × 253.5 (H×V×D) |
| Bezel Area(mm) | 307.4 × 231.3 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Response | 2/10 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 63% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 1.05Kgs (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 65 °C |
| Mitsubishi industrial 15.0 inch lcd panel tft lcd screen AC150XA01 tft lcd display | |
Description:
1. Product: Brand New as Original quality
2. Price: Reasonable and competitive price
3. Stock: Large quantity in stock
4. Quality control: All are tested before delivery
5. Shipment: Fast delivery, shipping in 1-3 days
6. After sale service: Excellent with 100% satisfaction
Our Advantages:
1.Professional export sales team.
2.Strong R&D ability.
3.Well-equipped factories.
4.Strict quality control.
5.Stable and reliable supplier chain.
6.Quick turnaround time.
7.Continual technical innovation.
8.All products with high standard quality and best materials.
Shipping and Package :
Packing:
Packed in bubble bags,foam box and carton to ensure safety in transportation.
For any special requirement about packing, pls tell us, we will do our best to meet your requirements.
About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
FAQ:
Q: Can you give me a discount if I need a large quantity of AC150XA01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: Can You declare my order of lcd panel Mitsubishi AC150XA01 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of Mitsubishi AC150XA01 ?
A: we will give you tracking number then you can trace your order form website.
