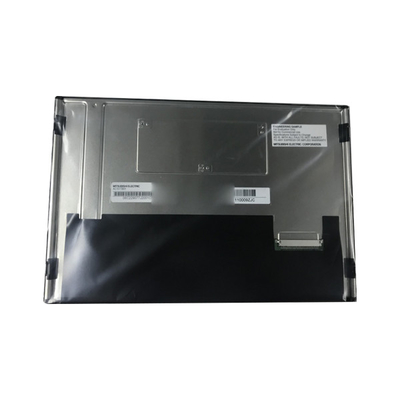

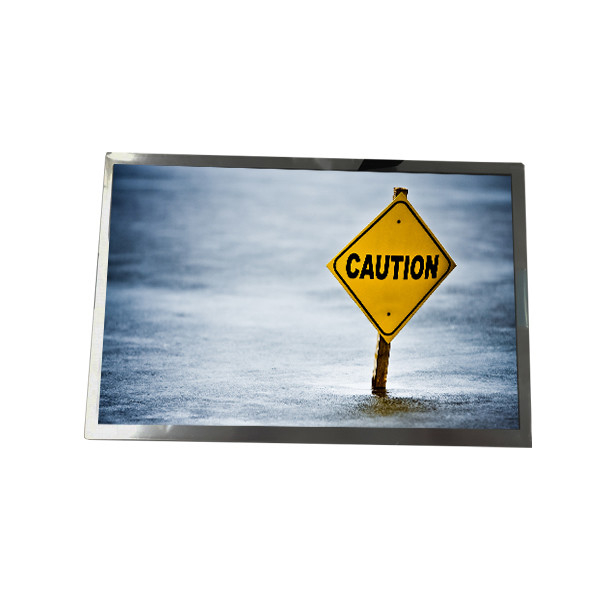

AC101TB01 10.1 inch 1280(RGB)×800 WLED lcd screen display screen lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AC101TB01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AC101TB01 | Diagonal Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×800 [WXGA] 149PPI | Active Area: | 216.96(H)×135.6(V) Mm |
| Outline Dim.: | 231(H)×153.5(V) ×10.25(D) Mm | Support Color: | 16.2M 50% NTSC |
| Light Source: | WLED , 50K Hours , With LED Driver | Designed For: | Industrial |
Product Description
AC101TB01 10.1 inch 1280(RGB)×800 WLED lcd screen display screen lcd display
Product details :
| Mitsubishi LCD SCREEN AC101TB01 | |
| Manufacturer | Mitsubishi |
| Model Name | AC101TB01 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.96 × 135.6 (H×V) |
| Outline(mm) | 231 × 153.5 × 10.25 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 16.2M 50% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| AC101TB01 10.1 inch 1280(RGB)×800 WLED lcd screen display screen lcd display | |
REMINDERS!!!
BEFORE YOU INSTALL THE SCREEN
PLEASE REMOVE THE BATTERY OR TURN OFF THE PHONE
1. Clean the flex cable by alcohol before install, check the flex cable clean and without dust confirm it connect well.
2. Don't pull the flex cable, don't press hard on the flex cable careful during installation.
3. Please press the screen carefully, the screen is fragile.
MATTERS NEEDING ATTENTION :
Before buying, please double check that the goods you need are the same as our products.
This is not an easy job for someone who has no technical skills with Disassembling or Assembling , so only purchase this item if you know how to install.
We will use good packaging, After receiving the parcel, please check the parcel in the appearance.
After receiving the goods, please do not install, testing the goods first.
Shipping and Package :
Packing:
1.Please take a video during open the package. (If there is any damage in transit, you can send this video as evidence )
2.We are really appreciate it if you would like to let us know the your brand name and detail model number of your tablet ,when you search it only through code number during the order.
Shipping:
1.We ship worldwide by DHL,UPS,FedEx,EMS,TNTE-PacketHK Post,SG PostChina Post etc.
2.We guarantee to ship out within 3 working days after payment confirmation(except Holiday).
3.We only ship to confirmed order address.Your order address MUST MATCH your shipping address.
4.If you haven't received your shipment within 30 days after payment,please contact us.We will track the shipment and get back to you as soon as possible.
FAQ:
Q: How long is the warranty of AC101TB01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of AC101TB01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of AC101TB01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods AC101TB01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
