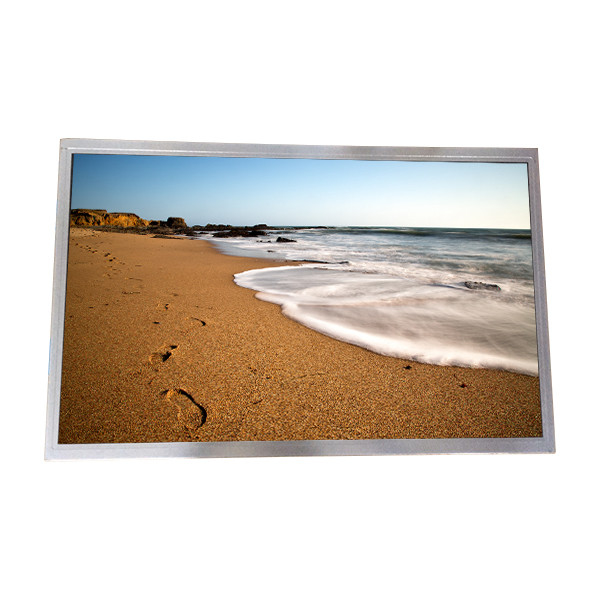

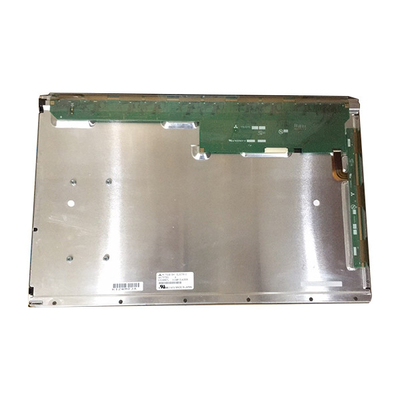

17.5 inch TFT screen 1280×768 lcd screen AA175TD01 display module
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA175TD01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA175TD01 | Panel Size: | 17.5" |
|---|---|---|---|
| Resolution: | 1280(RGB)×768, WXGA, 85PPI | Display Area: | 380.2(W)×228.1(H) Mm |
| Bezel Opening: | 384.2(W)×232.1(H) Mm | Outline Size: | 404(W)×258(H) ×16.7(D) Mm |
| Panel Weight: | 1.70Kgs (Typ.) | Application: | Industrial |
Product Description
17.5 inch TFT screen 1280×768 lcd screen AA175TD01 display module
Product details :

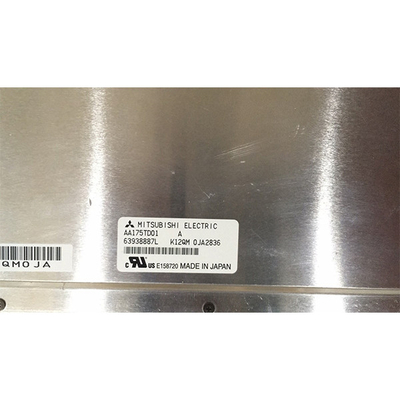

| Mitsubishi LCD SCREEN AA175TD01 | |
| manufacturer | Mitsubishi |
| Model Name | AA175TD01 |
| screen size | 17.5 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×768, WXGA, 85PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 380.2(W)×228.1(H) mm |
| physical dimension | 404(W)×258(H) ×16.7(D) mm |
| Visual size | 384.2(W)×232.1(H) mm |
| surface treatment | Antiglare, Hard coating (3H) |
| Brightness | 700 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Responding time | 4/12 (Typ.)(Tr/Td) |
| Number of color | 262K/16.7M 50% NTSC |
| Backlight type | 4 strings WLED , 100K hours , Without Driver |
| Panel weight | 1.70Kgs (Typ.) |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |
| 17.5 inch TFT screen 1280×768 lcd screen AA175TD01 display module | |
To Every dearest customer, if you have any problem or any questions with the deal, ONLY send us message and we will solve every problem to your satisfaction. Your kind understanding is highly appreciated.
Shipping and Package :
Packaging:
We usually pack our products by anti-static bags, bubble bags, good quality cartons. And we promise here if you get it bad because of poor package, it will be 100% our responsibility, and we will take care of that. And as it proved for our reponsibility, you will get 100% your money back, or free replacement.
Shipping:
We Ship to Worldwide
In order to ensure that customers can normally install the use of our products
Before shipment, we will detect this product
Most items will ship within 2-4business days on payment received.
Please provide your correct and detailed address and your phone number to ensure the delivery on time. We are not responsible for wrong or undeliverable address.
If you need to change your address, please contact us before you pay.
Our prices do not include any tariffs or other taxes;
If you have any questions please feel free to contact me
Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
FAQ:
Q: If I place order now,when will you ship the goods of AA175TD01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of AA175TD01 ?
A: Of course!sample order is welcome !
Q: How to make payment of AA175TD01 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of AA175TD01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
