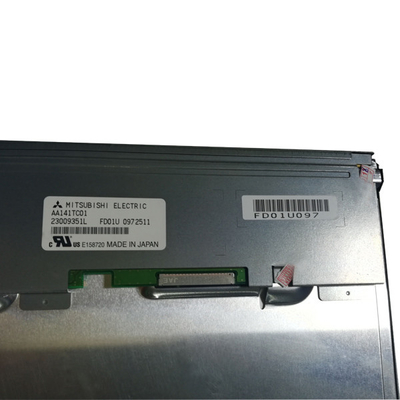

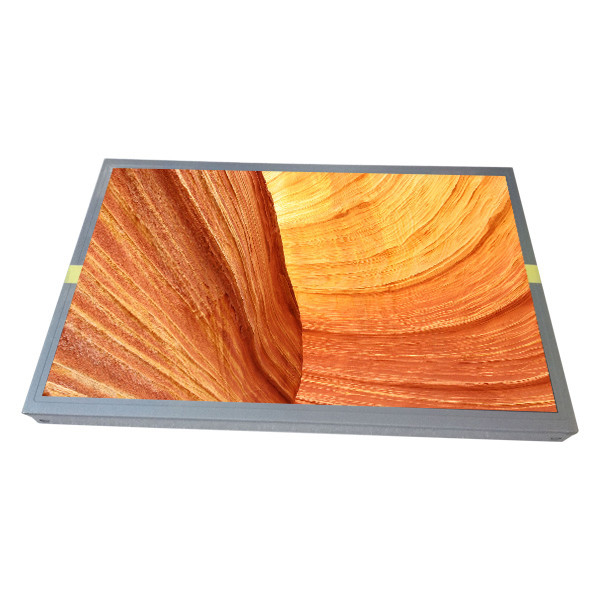

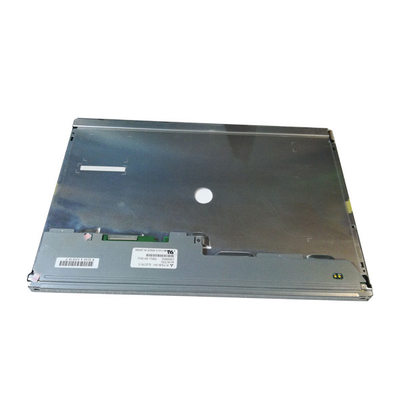

AA141TC01 14.1 inch TFT screen 1280(RGB)×800 display module
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA141TC01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA141TC01 | Panel Size: | 14.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA, 107PPI | Display Area: | 303.36(W)×189.6(H) Mm |
| Outline Size: | 326(W)×216.5(H) ×16.5(D) Mm | Bezel Opening: | 306.4(W)×192.6(H) Mm |
| Panel Weight: | 1.13Kgs (Typ.) | Application: | Industrial |
Product Description
AA141TC01 14.1 inch TFT screen 1280(RGB)×800 display module
Product details :
| Mitsubishi LCD SCREEN AA141TC01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA141TC01 |
| Screen Size | 14.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 107PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 303.36 × 189.6 (H×V) |
| Outline(mm) | 326 × 216.5 × 16.5 (H×V×D) |
| Bezel Area(mm) | 306.4 × 192.6 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 45% NTSC |
| Backlight | 5 strings WLED , 100K hours , No Driver |
| Mass | 1.13Kgs (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AA141TC01 14.1 inch TFT screen 1280(RGB)×800 display module | |
REMINDERS!!!
BEFORE YOU INSTALL THE SCREEN
PLEASE REMOVE THE BATTERY OR TURN OFF THE PHONE
1. Clean the flex cable by alcohol before install, check the flex cable clean and without dust confirm it connect well.
2. Don't pull the flex cable, don't press hard on the flex cable careful during installation.
3. Please press the screen carefully, the screen is fragile.
NOTICE:
. Quality Control: Every parts tested with special instruments or main boards before delivery to ensure working.
Shipping and Package :
SHIPMENT:
1.Orders processed timely after payment is verified .
2.If your address is defined as remote area, you will need pay extra remote shipping fee. Or please give us an ather new adress that is not remote.
3.Service transit time is provided by the carrier and excludes weekends and holidays. Transit times may very particularity during the holiday
MATTERS NEEDING ATTENTION :
Before buying, please double check that the goods you need are the same as our products.
This is not an easy job for someone who has no technical skills with Disassembling or Assembling , so only purchase this item if you know how to install.
We will use good packaging, After receiving the parcel, please check the parcel in the appearance.
After receiving the goods, please do not install, testing the goods first.
Because the accessories are constantly updated, Connector cable/Code number may sometimes with Image and description not bethe same, We just guarantee that the product you receive 100% perfect work. If you can't accept it, please don't buy it. Our goal is to hope you are very satisfied.
RETURN & EXCHANGE POLICY:
1.You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT.
2.All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your PO#.
3.We will refund YOUR FULL WINNING BIG AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH buyer and seller cancel the transaction . Or you may choose to have a replacement.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of AA141TC01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of AA141TC01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of AA141TC01 ?
A: We accept T/T , Paypal , western union .
