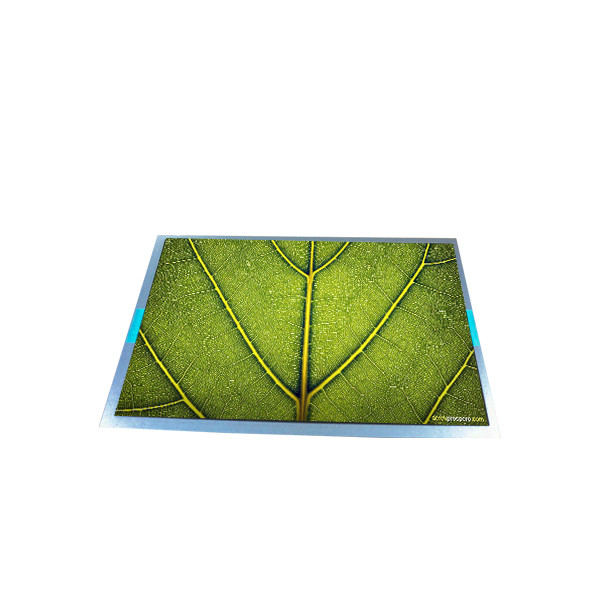

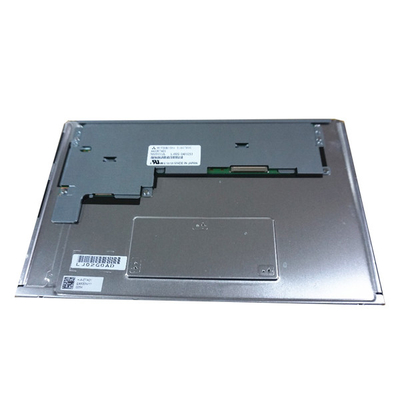

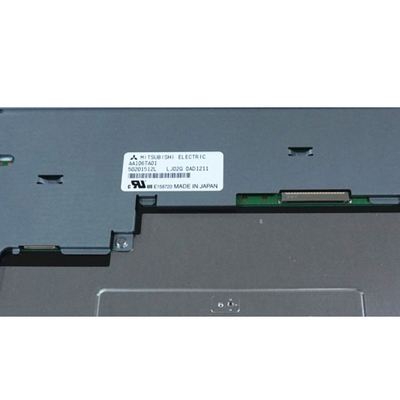

AA106TA01 LCD SCREEN display panel 10.6 inch Replacement maintenance
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA106TA01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA106TA01 | Panel Size: | 10.6" |
|---|---|---|---|
| Resolution: | 1280(RGB)×768, WXGA, 140PPI | Display Area: | 231.36(W)×138.816(H) Mm |
| Bezel Opening: | 235.4(W)×142.8(H) Mm | Outline Size: | 250(W)×157(H) ×9.4(D) Mm |
| Weight: | 420g (Typ.) | Application: | Industrial / Outdoor High Brightness |
Product Description
AA106TA01 LCD SCREEN display panel 10.6 inch Replacement maintenance
Product details :
| Mitsubishi LCD SCREEN AA106TA01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA106TA01 |
| Screen Size | 10.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×768 (WXGA) 140PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 231.36 × 138.816 (H×V) |
| Outline(mm) | 250 × 157 × 9.4 (H×V×D) |
| Bezel Area(mm) | 235.4 × 142.8 (H×V) |
| Treatment | Clear, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 420g (Typ.) |
| Used for | Industrial Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| AA106TA01 LCD SCREEN display panel 10.6 inch Replacement maintenance | |
NOTE:
1. Please confirm the model number of your screen when you order our screen.So as not to buy the wrong, can not be used normally.
2.Before you confirming the screen can not work perfectly, please do not use the adhesive to install our screen to your equipment,if the screen paste the glue, we can not accept you to return it and ask for the payment refunding.
3. The problem you may meet
a.broken screen→ make an unpacking video → contact us and send the video
b. un-working screen→ make a testing video → contact us and send the video
Shipping and Package :
Shipping :
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
Russian customer attention: We can only send by EMS to Russia, EMS usually takes more days to arrive, so your patience is really appreciated.
Warranty:
1. We take 90 days warranty from the shipping date , no matter what quality problem it's .
2 .Please write down our email address and MSN , if you have any problem pls contact us immediately , we will help you to solve the prolbem ASAP.
FAQ:
Q: If I place order now,when will you ship the goods of AA106TA01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods AA106TA01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of AA106TA01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
