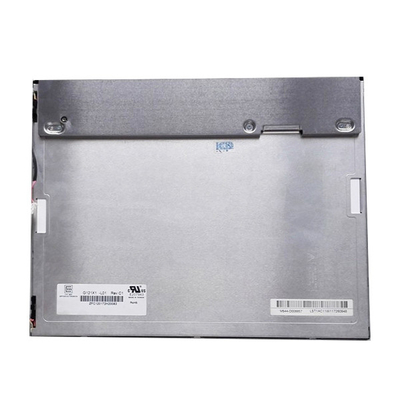

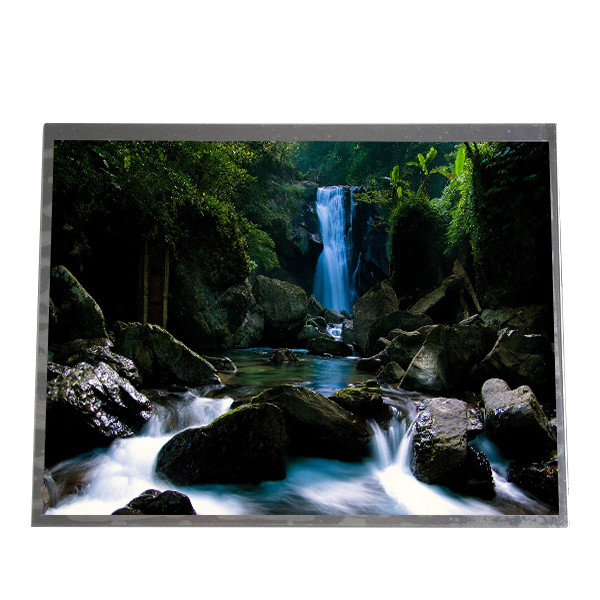

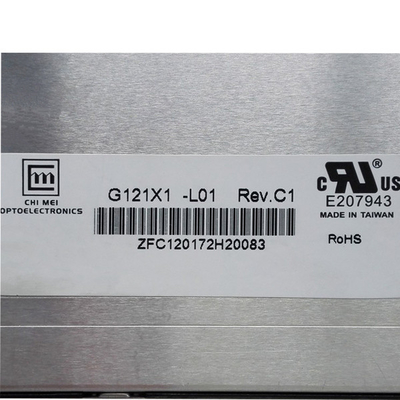

12.1inch LCD module G121X1-L01 1024*768 Suitable for industrial display
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | G121X1-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Pixel Number: | 1024(RGB)×768 (XGA) 105PPI | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Active Area(mm): | 245.76 × 184.32 (H×V) | Outline(mm): | 260.5 × 204 × 12.7 (H×V×D) |
| Bezel Area(mm): | 249.0 × 187.5 (H×V) | Mass: | 660g (Max.) |
| Used For: | Industrial / Outdoor High Brightness | ||
Product Description
12.1inch LCD module G121X1-L01 1024*768 Suitable for industrial display
Product details :
| CMO LCD SCREEN G121X1-L01 | |
| Manufacturer | CMO |
| Model Name | G121X1-L01 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 105PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 245.76 × 184.32 (H×V) |
| Outline(mm) | 260.5 × 204 × 12.7 (H×V×D) |
| Bezel Area(mm) | 249.0 × 187.5 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 700: 1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 13/12 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 2 pcs CCFL , 50K hours , No Driver |
| Mass | 660g (Max.) |
| Used for | Industrial Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 80 °C Operating Temp.: -30 ~ 70 °C |
| 12.1inch LCD module G121X1-L01 1024*768 Suitable for industrial display | |
Dear friend, please kindly check your original model number .
if you can .please send us your original screen picture to confirm that if your screen is same as my screen .
Shipping Information:
·Payment terms we only accept escrow services.
·Items will be ship within 3 days of payment receive.
·Standard shipping using international Airmail,Items ship from Hongkong and it takes 10-20 working days (2-4 weeks) to receive for most area.
·If you do not receive item within 30 working days (6 weeks), please contact us to investigate the case.
Return Policy:
·We appreciate your business and offer an instant 7 days return policy.(7 days after receive the items).
·The returned item has to be in its original condition.
·We are able to refund your money without shipping cost.
·If you have any question, please contact us via Trademanager .
Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
About Guarantee:
1. 12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with 3-month warranty.
2. Defective items MUST BE reported & returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is & give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
FAQ:
Q: What happen if the lcd panel G121X1-L01 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about G121X1-L01 ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order G121X1-L01?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order CMO G121X1-L01 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
Shipping and Package :
