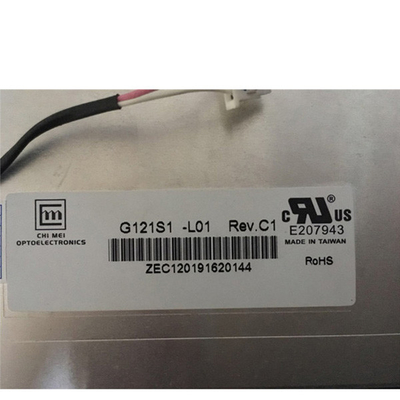

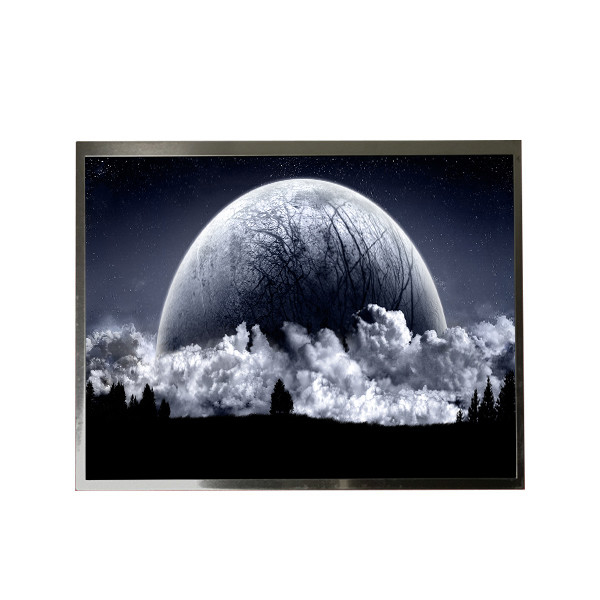

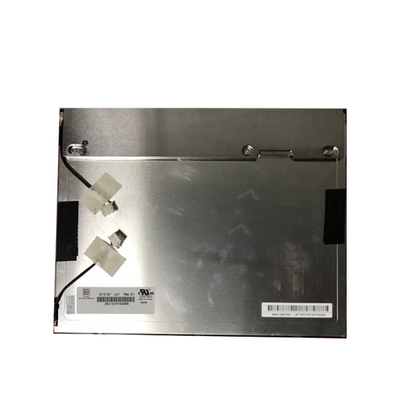

12.1inch Original LCD module 800*600 G121S1-L01 Applied to industrial products
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | G121S1-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G121S1-L01 | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 800(RGB)×600 (SVGA) 82PPI | Display Area: | 246 × 184.5 (H×V) |
| Bezel Opening: | 249.0 × 187.5 (H×V) | Outline Size: | 260.5 × 204 × 12.7 (H×V×D) |
| Color Depth: | 262K 53% NTSC | Application: | Industrial Automotive Display |
Product Description
12.1inch Original LCD module 800*600 G121S1-L01 Applied to industrial products
Product details :
| CMO LCD SCREEN G121S1-L01 | |
| Manufacturer | CMO |
| Model Name | G121S1-L01 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×600 (SVGA) 82PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 246 × 184.5 (H×V) |
| Outline(mm) | 260.5 × 204 × 12.7 (H×V×D) |
| Bezel Area(mm) | 249.0 × 187.5 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Min.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 13/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 262K 53% NTSC |
| Backlight | 2 pcs CCFL , 50K hours , No Driver |
| Mass | 660g (Max.) |
| Used for | Industrial Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Voltage Supply | 3.3/5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 80 °C Operating Temp.: -30 ~ 70 °C |
| 12.1inch Original LCD module 800*600 G121S1-L01 Applied to industrial products | |
