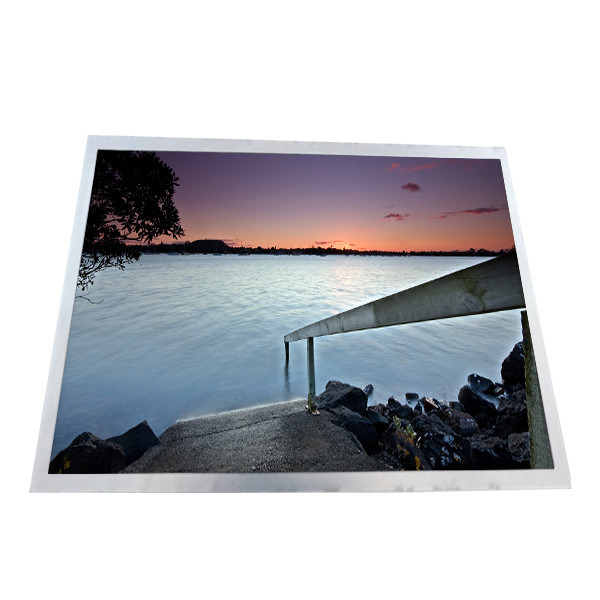

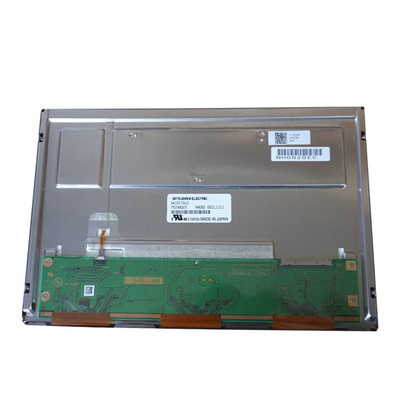

AA101TA12 10.1 inch 1280(RGB)×800 WLED screen lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA101TA12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA101TA12 | Panel Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA, 149PPI | Display Area: | 216.96(W)×135.6(H) Mm |
| Bezel Opening: | 220.96(W)×139.6(H) Mm | Outline Size: | 231(W)×153.5(H) ×9(D) Mm |
| Panel Weight: | 310g | Application: | Industrial / Outdoor High Brightness |
Product Description
AA101TA12 10.1 inch 1280(RGB)×800 WLED screen lcd display
Product details :
| Mitsubishi LCD SCREEN AA101TA12 | |
| Manufacturer | Mitsubishi |
| Model Name | AA101TA12 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.96 × 135.6 (H×V) |
| Outline(mm) | 231 × 153.5 × 9 (H×V×D) |
| Bezel Area(mm) | 220.96 × 139.6 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 800 (Typ.)(cd/m²) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | 2 strings WLED , 100K hours , No Driver |
| Mass | 310g |
| Used for | Industrial / Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 80 °C Operating Temp.: -40 ~ 80 °C |
| AA101TA12 10.1 inch 1280(RGB)×800 WLED screen lcd display | |
