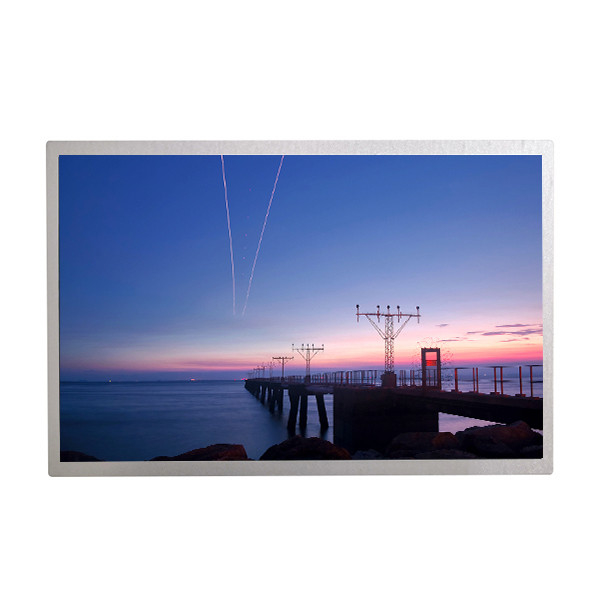

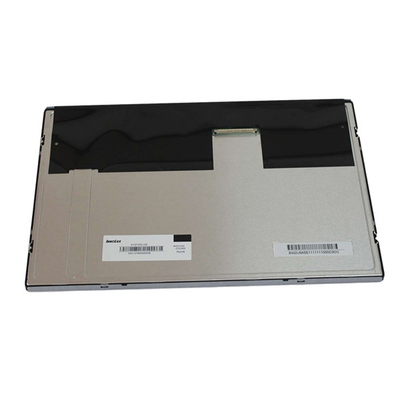

12.1 inch LCD panel G121ICE-L01 support 1280*800 600 cd/m lvds input 60HZ 12.1 INCH LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | G121ICE-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G121ICE-L01 | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 (WXGA) 124PPI | Display Area: | 261.12 × 163.2 (H×V) |
| Bezel Opening: | 264.12 × 166.2 (H×V) | Outline Size: | 278 × 184 × 11 (H×V×D) |
| Panel Weight: | 455g (Typ.) | Application: | Industrial |
Product Description
12.1 inch LCD panel G121ICE-L01 support 1280*800 600 cd/m lvds input 60HZ 12.1 INCH LCD screen
Product details :
| Innolux LCD SCREEN G121ICE-L01 | |
| Manufacturer | Innolux |
| Model Name | G121ICE-L01 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 124PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 261.12 × 163.2 (H×V) |
| Outline(mm) | 278 × 184 × 11 (H×V×D) |
| Bezel Area(mm) | 264.12 × 166.2 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Min.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 12/8 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 455g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

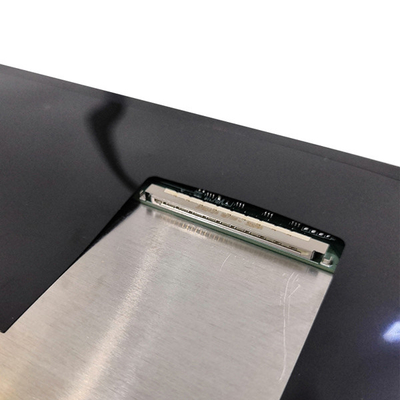

| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C |
| 12.1 inch LCD panel G121ICE-L01 support 1280*800 600 cd/m lvds input 60HZ 12.1 INCH LCD screen | |
Office Hours:9:00am-18:30pm,
Monday-Saturday, Beijing Time.(Except oficial holidays.)
Please help yourself to order if we're offline.
We'll reply as soon as we get to work and arrange delivery quickly.
For large amount,please do not hesitate to contact us for our best price.
You are always welcome to leave us messages.
Expect to have nice co-operation with you.
Shipping:
1. We ship to worldwide, per order have a tracking number.
2.Item will be shipped within 3 business days after we received a verified payment.
3.SERVICE TRANSIT TIME is provided by the carrier and excldes weekends and holidays. Transit times may vary ,particularly during the holiday season,such as Christmas season and weeks before Chinese New Year Holiday,most warehouses will be full that it will cause delayed to deliver.
4.lf you have not received your items within 30 days after payment for postage delivery (like china post), please let us know .We will further track the parcel and reply you ASAP. Our goal is customer satisfaction!
5.We support most shipping ways: DHL. UPS,FEDEX,EMS, HK Post, SG Post. China Post etc.
6.About delivery time(reference only)
Warranty:
1. All products are under 6 month warranty.(Excluding the Accessories)
2. lf you wish to exchange defectives or incorrectly shipped items. Please do as this :
Step1)E-mail us within 7workind days or chat with us by Trade Manager
Step2)Send photos to us about the problems of the items or something else details
Step3)Return the items to us with tracking number .then we will delivery the right item to youimmediately.
FAQ:
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of G121ICE-L01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of G121ICE-L01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of G121ICE-L01 ?
A: Of course!If you make a large order, we will give you a discount.
Shipping and Package :
