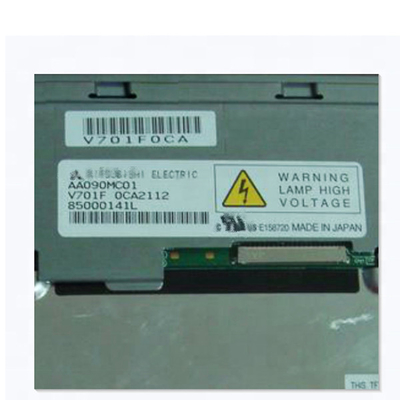

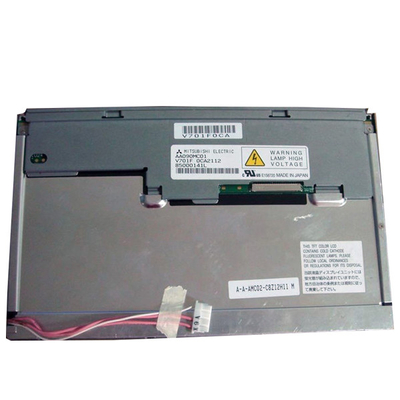

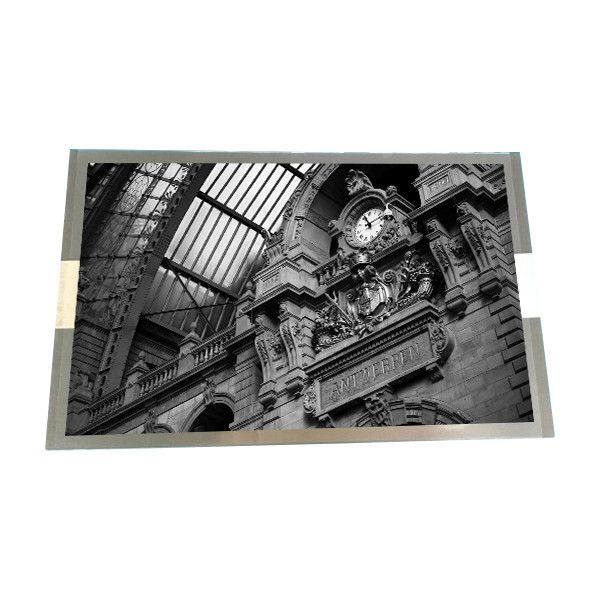

AA090MC01 Original 9.0 inch 800(RGB)×480 LCD Display Screen for Mitsubishi
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA090MC01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AA090MC01 | Panel Size: | 9.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA, 103PPI | Display Area: | 196.8(W)×118.08(H) Mm |
| Bezel Opening: | 199.4(W)×120.7(H) Mm | Outline Size: | 219(W)×136.2(H) ×13.7(D) Mm |
| Panel Weight: | 480g (Typ.) | Application: | Industrial |
Product Description
AA090MC01 Original 9.0 inch 800(RGB)×480 LCD Display Screen for Mitsubishi
Product details :
| Mitsubishi LCD SCREEN AA090MC01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA090MC01 |
| Screen Size | 9.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 103PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 196.8 × 118.08 (H×V) |
| Outline(mm) | 219 × 136.2 × 13.7 (H×V×D) |
| Bezel Area(mm) | 199.4 × 120.7 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 2 pcs CCFL , 50K hours , No Driver |
| Mass | 480g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AA090MC01 Original 9.0 inch 800(RGB)×480 LCD Display Screen for Mitsubishi | |
