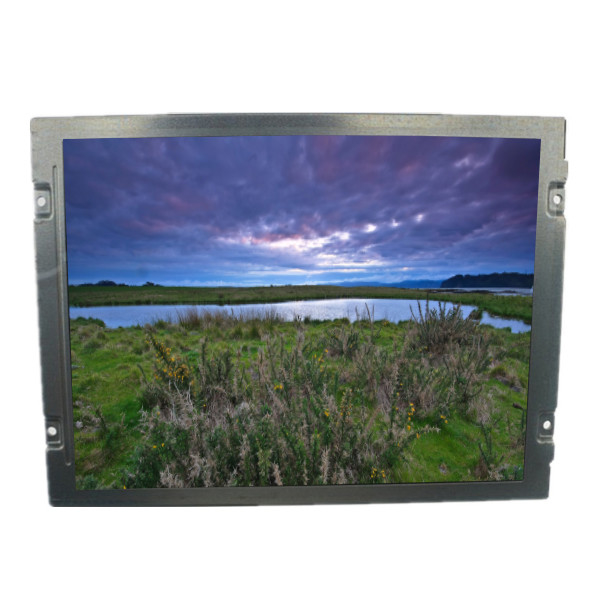

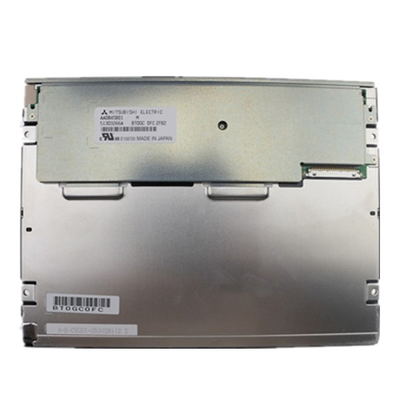

8.4 inch 800×600 WLED LCD display AA084SB01 tft lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA084SB01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Pixel Number: | AA084SB01 | Screen Size: | 8.4 Inch |
|---|---|---|---|
| Active Area(mm): | 170.4 × 127.8 (H×V) | Outline(mm): | 199.5 × 149 × 12 (H×V×D) |
| Bezel Area(mm): | 174.9 × 132.2 (H×V) | Mass: | 365g (Typ.) |
| Used For: | Industrial | ||
Product Description
8.4 inch 800×600 WLED LCD display AA084SB01 tft lcd screen
Product details :

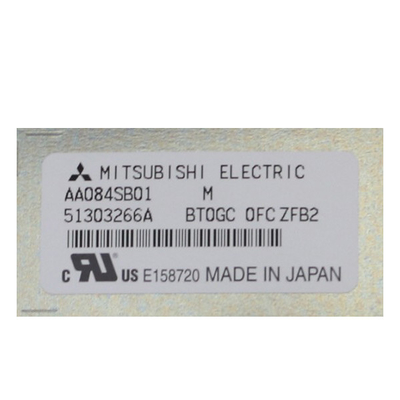

| Mitsubishi LCD SCREEN AA084SB01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA084SB01 |
| Screen Size | 8.4 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×600 (SVGA) 119PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 170.4 × 127.8 (H×V) |
| Outline(mm) | 199.5 × 149 × 12 (H×V×D) |
| Bezel Area(mm) | 174.9 × 132.2 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 2 strings WLED , 100K hours , No Driver |
| Mass | 365g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 8.4 inch 800×600 WLED LCD display AA084SB01 tft lcd screen | |
Important Tips:
Please testing before fixing and please don’t remove the mark before you have confirm the product has not any problem. Buyer once remove the mark, we don’t offer any warranty.
Shipping and Package :
Shipping:
1.We will test them strictly before shipping.
2.We will ship it within 3 working days after we get the order.
3.The delivery time normally will be 7 to 50 days, which will be different for different countries. You can choose AliExpress Standard Shipping,It is faster than others.
4. * United States / United Kingdom / Australia may take 7-30 working days.
5.* Canada may take 7-35 working days.
6.* France / Spain / Germany may take 7-30 working days.
7.* Eastern Europe may take 16-30 working days.
8.* Italy / Brazil / South America may take 30-50 working days.
9.* Shipped by DHL Express: 7-12 working days (you need to pay extra fee).
Warm Tip:
1)Every products will be tested before delivery, with special instruments or main boards to ensure working.
2)All the products ,3 months warranty ,strictly test before ship,Please inform us WITHIN 3 DAYS after receiving the parcel if you are dissatisfied with products (Real picture and other evidence must be given),then we will offer replacement /refund if the products are not as .
3)If the item is your prossession more than 7 days ,it is considered used /second –hand ,we will Only offer replacement service after we get your return item .
Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (not include Public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
FAQ:
Q: If I place order now,when will you ship the goods of AA084SB01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of AA084SB01 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of AA084SB01 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
