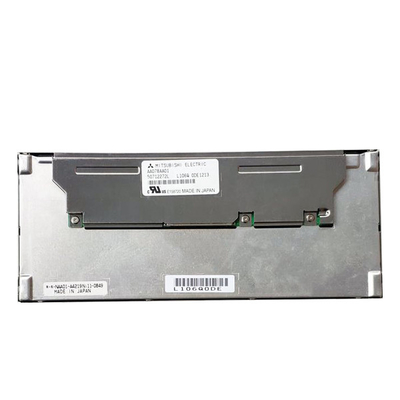

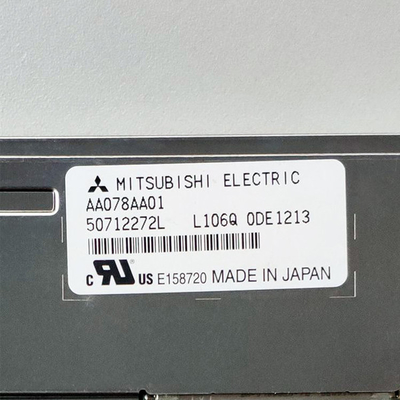

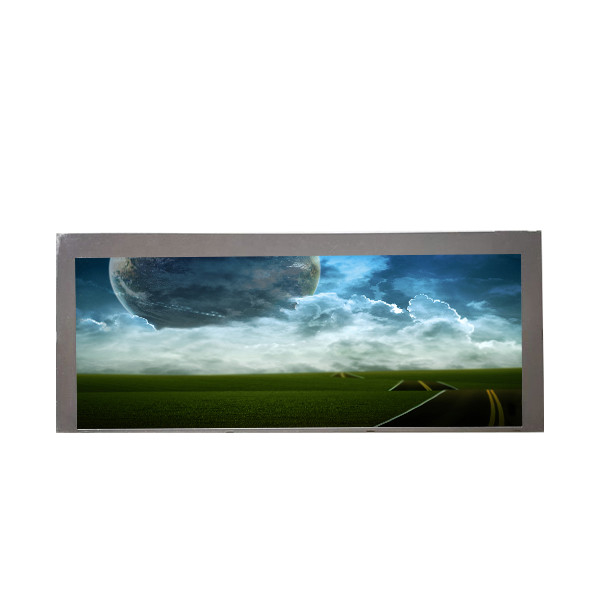

AA078AA01 Brand New Original 7.8 inch LCD Screen Display for Industrial Application for Mitsubishi
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA078AA01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA078AA01 | Screen Size: | 7.8 Inch (8/15 Cut Of 8.5") |
|---|---|---|---|
| Pixel Number: | 800(RGB)×300 109PPI | Active Area(mm): | 207 × 86 (H×V×D) |
| Outline(mm): | 169.8 × 109.7 × 9.4 (H×V×D) | Bezel Area(mm): | 87.8 × 72.3 (H×V) |
| Mass: | 200g (Typ.) | Used For: | Industrial / Stretched Bar LCD |
Product Description
AA078AA01 Brand New Original 7.8 inch LCD Screen Display for Industrial Application for Mitsubishi
Product details :
| Mitsubishi LCD SCREEN AA078AA01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA078AA01 |
| Screen Size | 7.8 inch (8/15 cut of 8.5") |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×300 109PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 184.8 × 69.3 (H×V) |
| Outline(mm) | 207 × 86 (H×V×D) |
| Bezel Area(mm) | 187.8 × 72.3 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 200g (Typ.) |
| Used for | Industrial / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| AA078AA01 Brand New Original 7.8 inch LCD Screen Display for Industrial Application for Mitsubishi | |
Before buying:
Please double check your model and screen size and part number. If you are not sure about the compatibility of this product, please send us the specific model and photo of your original screen; Usually the LED panels we send are compatible models, which may not be exactly the same as your original screen model. But we can make sure it fits the model 100%. All items will be tested before shipment. Your satisfaction is our goal!
Important tips:
1.All devices be tested before shipping and 100% working well.
2.Please test before installation !!! and then install the machine after the test is complete.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
3.LCD is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
Shipping and Package :
Shipping Details:
1: Please confirm your address carefully after placing an order. We will send you the product within 3 days after receiving the payment.
2: If you do not receive the product within 45 days, please contact us. And please give us 3 working days to check the undelivered package and the reason. If it is our fault, we will refund you.
Other:
1. We are not responsible for any duties or import duties.
2: All emails will be answered within 24 hours. If you do not hear back from us, please resend your email and we will reply to you. Thank you very much!
FAQ:
Q: If I place order now,when will you ship the goods of AA078AA01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of AA078AA01 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of AA078AA01 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of AA078AA01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
