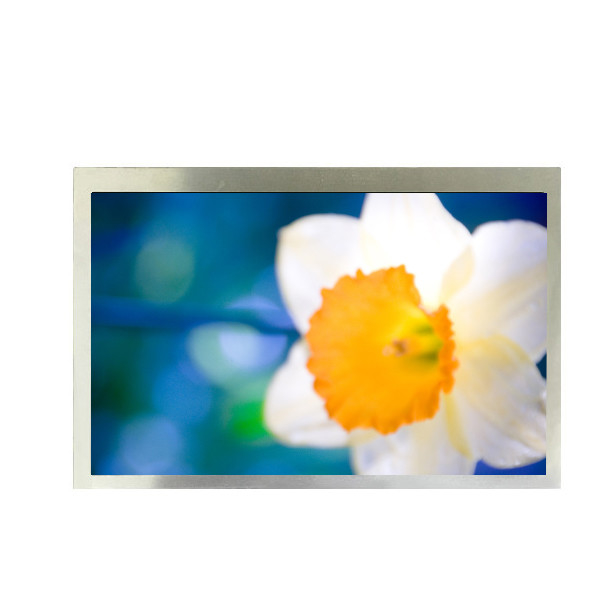

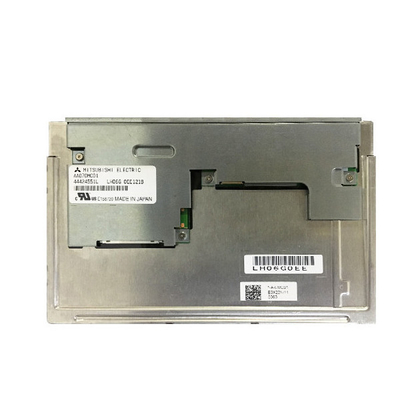

AA070MC01 lcd panel 7.0 inch 800×480 WLED Lcd screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA070MC01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA070MC01 | Screen Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480 (WVGA) 133PPI | Active Area(mm): | 152.4 × 91.44 (H×V) |
| Outline(mm): | 169.8 × 109.7 × 9.4 (H×V×D) | Bezel Area(mm): | 156.4 × 95.5 (H×V) |
| Mass: | 200g (Typ.) | Used For: | Industrial / Outdoor High Brightness |
Product Description
AA070MC01 lcd panel 7.0 inch 800×480 WLED Lcd screen display
Product details :
| Mitsubishi LCD SCREEN AA070MC01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA070MC01 |
| Screen Size | 7.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Outline(mm) | 169.8 × 109.7 × 9.4 (H×V×D) |
| Bezel Area(mm) | 156.4 × 95.5 (H×V) |
| Treatment | Clear, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 12/12 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SWV, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | WLED , 100K hours , With LED Driver |
| Mass | 200g (Typ.) |
| Used for | Industrial / Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| AA070MC01 lcd panel 7.0 inch 800×480 WLED Lcd screen display | |
