Mitsubshi 6.5 inch AA065VD01 LCD panels VGA With wide viewing angle LCD displays
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA065VD01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AA065VD01 | Panel Size: | 6.5" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 122PPI | Display Area: | 132.48(W)×99.36(H) Mm |
| Outline Dim.: | 154(W)×121(H) Mm | Bezel Opening: | 135.5(W)×102.4(H) Mm |
| Panel Weight: | 185g (Typ.) | Application: | Industrial |
Product Description

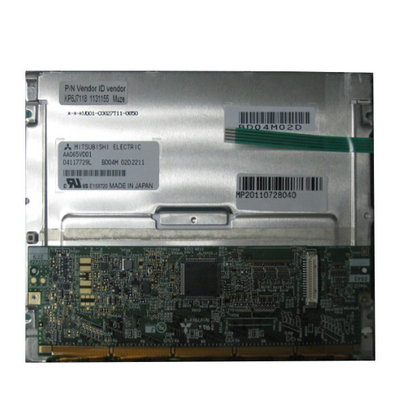

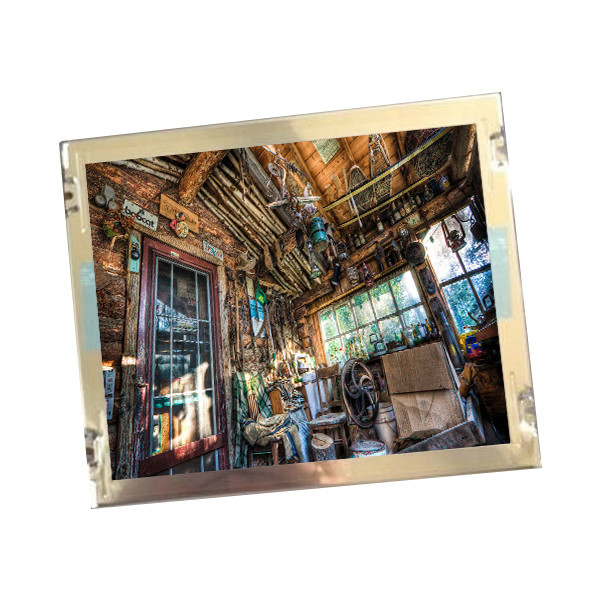

Mitsubshi 6.5 inch AA065VD01 LCD panels VGA With wide viewing angle LCD displays
Product details :
| Mitsubishi LCD SCREEN AA065VD01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA065VD01 |
| Screen Size | 6.5 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 122PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 132.48 × 99.36 (H×V) |
| Outline(mm) | 154 × 121 (H×V×D) |
| Bezel Area(mm) | 135.5 × 102.4 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Response | 6/19 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 40% NTSC |
| Backlight | 2 strings WLED , 100K hours , No Driver |
| Mass | 185g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 31 pins Connector |
| Voltage Supply | 3.3V (Typ.)(VCC) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Mitsubshi 6.5 inch AA065VD01 LCD panels VGA With wide viewing angle LCD displays | |
ATTENTION:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1.Please check your laptop model in compatible list or tell if wide screen or standard screen.
2.Please check the LcD screen size and resolution.
3.Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L),5Opin 6Opin ) and position4. Please check the physical resolution pixels of LCD screen.
Shipping and Package :
Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of AA065VD01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods AA065VD01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of AA065VD01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
