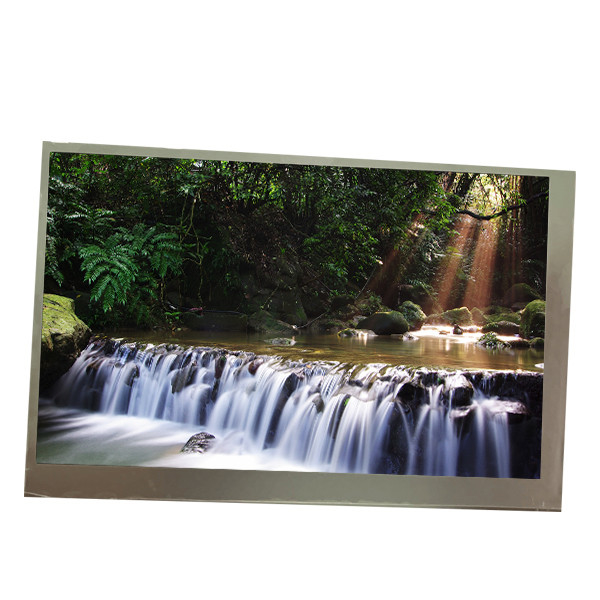

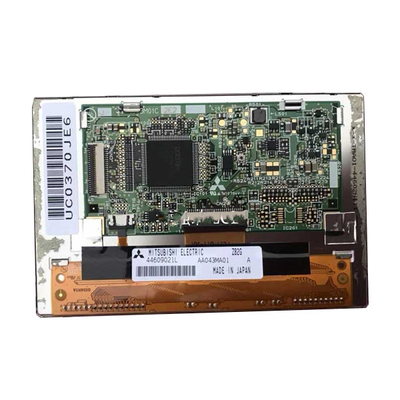

AA043MA01 TFT Lcd Display 4.3 inch lcd screen 800(RGB)×480 A+Grade
Product Details:
Place of Origin: | China |
Brand Name: | Mitsubishi |
Model Number: | AA043MA01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Panel Model: | AA043MA01 | Panel Size: | 4.3" |
---|---|---|---|
Resolution: | 800(RGB)×480, WVGA, 218PPI | Display Area: | 93(W)×55.8(H) Mm |
Bezel Opening: | 95.0(W)×57.8(H) Mm | Outline Size: | 103(W)×67.5(H) ×5.8(D) Mm |
Panel Weight: | 58.0g (Typ.) | Application: | Industrial |
Product Description
AA043MA01 TFT Lcd Display 4.3 inch lcd screen 800(RGB)×480 A+Grade
Product details :
Mitsubishi LCD SCREEN AA043MA01 | |
manufacturer | Mitsubishi |
Model Name | AA043MA01 |
screen size | 4.3 inch |
Screen type | a-Si TFT-LCD , LCM |
Resolution | 800(RGB)×480 [WVGA] 218PPI |
Pixel configuration | RGB Vertical Stripe |
Display size | 93(H)×55.8(V) mm |
physical dimension | 103(H)×67.5(V) ×5.8(D) mm |
Visual size | 95.0(H)×57.8(V) mm |
surface treatment | Clear, Hard coating (2H) |
Brightness | 200 cd/m² (Typ.) |
Contrast | 400:1 (Typ.) (TM) |
Best angle | 6 o'clock |
Optical mode | TN, Normally White, Transmissive |
Viewing angle | 65/65/65/45 (Typ.)(CR≥10) |
Responding time | 5/20 (Typ.)(Tr/Td) |
Number of color | 262K/16.7M 53% NTSC |
Backlight type | WLED [2 strings] , W/O Driver |
Panel weight | 58.0g (Typ.) |
Apply to | Industrial |
Refresh rate | 60Hz |
Touch function | No touch |
signal system | CMOS (1 ch, 6/8-bit) , 45 pins Connector |
Supply voltage | 3.3V (Typ.)(VCC) |
Maximum rating | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
AA043MA01 TFT Lcd Display 4.3 inch lcd screen 800(RGB)×480 A+Grade |
Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
Shipping and Package :
Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
Shipping:
1. We will test them strictly before shipping.
2. We will ship it within 3 working days after we get the order.
3. The delivery time normally will be 7 to 50 days, which will be different for different countries. You can choose AliExpress Standard
Warranty and Return:
1. We offer warranty for all of our products.
2. Buyers bear the shipping cost for returning defective or non-defective item to us.
3. Return items should be in good condition same as we sent, not damaged.
4. Returned items are subject to approval by us, it should be in original box as we sent.
5. Physically damaged items received should be reported within 2 days.
6. All NON-Seller Mistake returns, there is 15% re-stocking fees and shipping and handling charges are NON-refundable. (E.g. you boughtwrong item)
FAQ:
Q: Can you give me a discount if I need a large quantity of AA043MA01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of AA043MA01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of AA043MA01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of AA043MA01 ?
A: We accept T/T , Paypal , western union .
