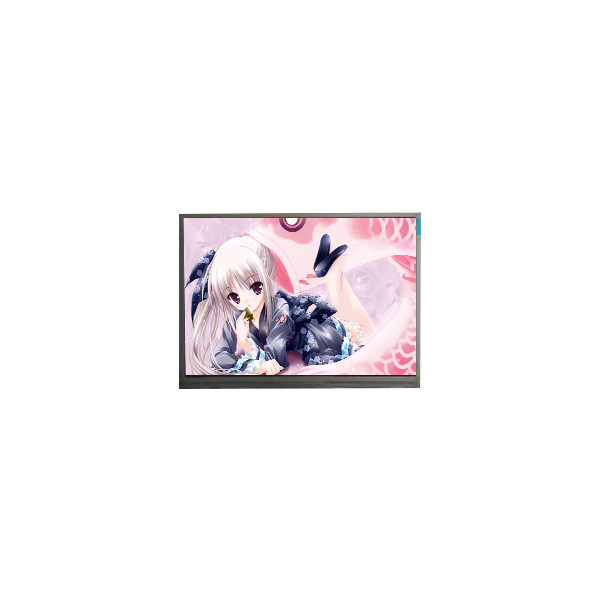

Original 6.2 inch For Innolux 720*1520 LCD Screen Display Module Panel F062A07-6T2
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F062A07-6T2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | F062A07-6T2 | Panel Size: | 6.2" |
|---|---|---|---|
| Resolution: | 720(RGB)×1520 270PPI | Active Area: | 67.608(W)×142.728(H) Mm |
| Luminance: | 0 Cd/m² | Outline Size: | 69.61 × 148.33× 0.3 (H×V×D) |
| Contrast Ratio: | 1500 : 1 (Typ.) (TM) | Used For: | Mobile Phone |
| Glass Thickness: | 0.15+0.15 Mm | Transmissivity: | 3.3% (Typ.) |
Product Description
Original 6.2 inch For Innolux 720*1520 LCD Screen Display Module Panel F062A07-6T2
Product details :
| Brand | Innolux |
| Model P/N | F062A07-6T2 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1520 270PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.608(W)×142.728(H) mm |
| Bezel Opening | - |
| Outline(mm) | 69.61 × 148.33× 0.3 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.15+0.15 mm |
| Transmissivity | 3.3% (Typ.) |
| Color Depth | 16.7M 69%NTSC |
| Backlight | No B/L |
| Mass | 94.4g (Typ.) |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, I²C |
| Driver IC list | SuggestCOGILI9881H, NT36525, HX83102B |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| F062A07-6T2 6.2 inch TFT LCD Touch Screen Portable Phone | |
Useful news:
1. Each screen is tested before shipping ,makeing sure 100% working;
2. Differrent time got differrent code in factory so we just can guarantee the one you received that will be compatible with your tablet, if yours is not with the same cable code as the pictures on web! thanks
3.Please kindly leave us your exact full name (especially buyer from RU ) and Telephone No. , in your order as buyer, so that the courier can delivery the your items timely and easily.
Above & following provisions take effect once upon you place an order!(Very important for you,Please read it before bidding.)
Shipping and Package :
Shipment:
1.Worldwide shipping.
2.we ship it by DHL to all the customer,it arrive you in 3-7days,and some country may be need to pay some duty fees,It depend on the receiver’s country policy.
If you need me to ship it by low fees courier and not custom fees,you can inform us so that we can help you choose to ship it by HK post,but it need to arrive you in 15-20 day.
3.We are not responsible for any import fees,remote area charges,taxes or other Customs fees.
Return Policy:
1·We appreciate your business and offer an instant 7 days return policy.(7 days after receive the items).
2·The returned item has to be in its original condition.
3·We are able to refund your money without shipping cost.
4·If you have any question, please contact us via Trademanager .
FAQ:
Q: How can I trace my order of F062A07-6T2 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of F062A07-6T2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of F062A07-6T2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods F062A07-6T2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
