10.4 inch 640*480 G104V1-T01 tft screen lcd display tft lcd display module tft lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | G104V1-T01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | G104V1-T01 | Diagonal Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 (VGA) 76PPI | Display Area: | 211.2 × 158.4 (H×V) |
| Outline(mm): | 225.5 × 176.3 × 10 (H×V×D) | Bezel Area(mm): | 215.4 × 161.8 (H×V) |
| Display Colors: | 262K 55% NTSC | Used For: | Industrial Automotive Display |
Product Description

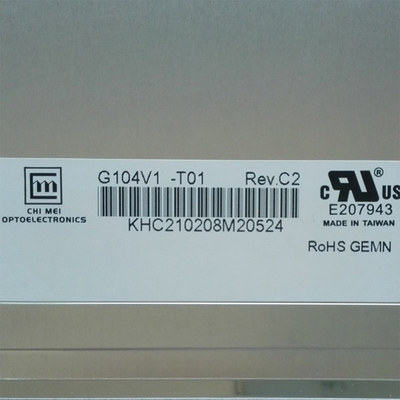

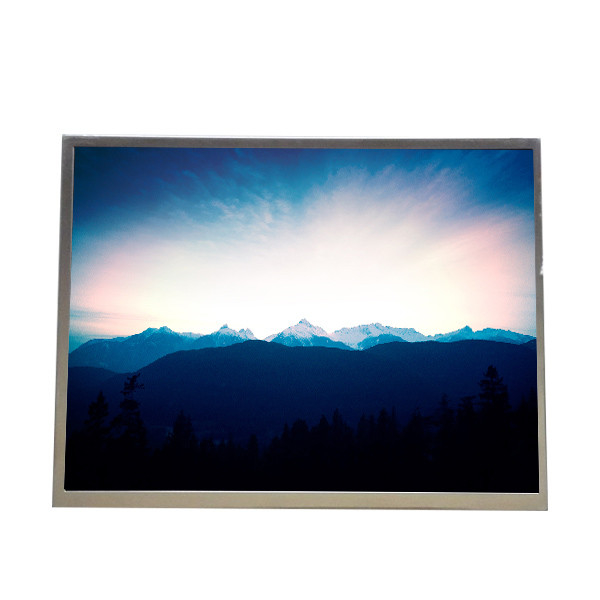

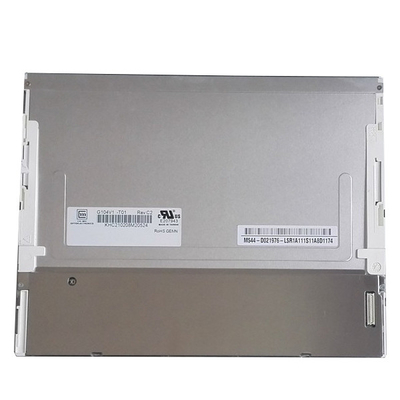

10.4 inch 640*480 G104V1-T01 tft screen lcd display
Product details :
| CMO LCD SCREEN G104V1-T01 | |
| Manufacturer | CMO |
| Model Name | G104V1-T01 |
| Panel Size | 10.4 inch |
| Panel Type | LCM , a-Si TFT-LCD |
| Pixel Number | 640(RGB)×480 (VGA) 76PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 211.2 × 158.4 (H×V) |
| Outline(mm) | 225.5 × 176.3 × 10 (H×V×D) |
| Bezel Area(mm) | 215.4 × 161.8 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 450 (Typ.)(cd/m²) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 14/9 (Typ.)(Tr/Td) ms |
| Color Depth | 262K 55% NTSC |
| Backlight | 2 pcs CCFL , 50K hours , No Driver |
| Mass | 470g (Typ.) |
| Used for | Industrial Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS/TTL (1 ch, 6-bit) , 31 pins Connector |
| Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
| Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 10.4 inch 640*480 G104V1-T01 tft screen lcd display tft lcd display module tft lcd panel | |
Note :
We have more than 10 years experience on lcd displays filed . Our LCD Display will be tested ok before shipping . So it is very safe for you to do lcd display business with us .
Because Our company have many LCD models, we can't uploaded real product pictures for each model, but we will send you the correct products. If you are worried about product problems, you can contact us before placing an order.
Shipping Information:
1·Payment terms we only accept escrow services.
2·Items will be ship within 2 days of payment receive.
3·Standard shipping using international Airmail,Items ship from Hongkong and it takes 10-20 working days (2-4 weeks) to receive for most area.
4·If you do not receive item within 30 working days (6 weeks), please contact us to investigate the case.
Return Policy:
1·We appreciate your business and offer an instant 7 days return policy.(7 days after receive the items).
2·The returned item has to be in its original condition.
3·We are able to refund your money without shipping cost.
4·If you have any question, please contact us via Trademanager .
Notice:
1·Please be advised that the Customs Department of your country could impose duty or sales taxon your ordered item when it enters your country. we cannot be responsible for any tax or duty charged by your government on the purchase.
2·If you received a defective or incorrect item inside the parcel, please notify us and simply returnthe item for exchange.
3·Please feel free to contact me if you have any questions! We will reply to you in 24 hours.
Return and feedback:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
FAQ:
Q: How long is the warranty of G104V1-T01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of G104V1-T01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order G104V1-T01 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for G104V1-T01 ?
A: Of course!sample order is welcome !
Shipping and Package :
