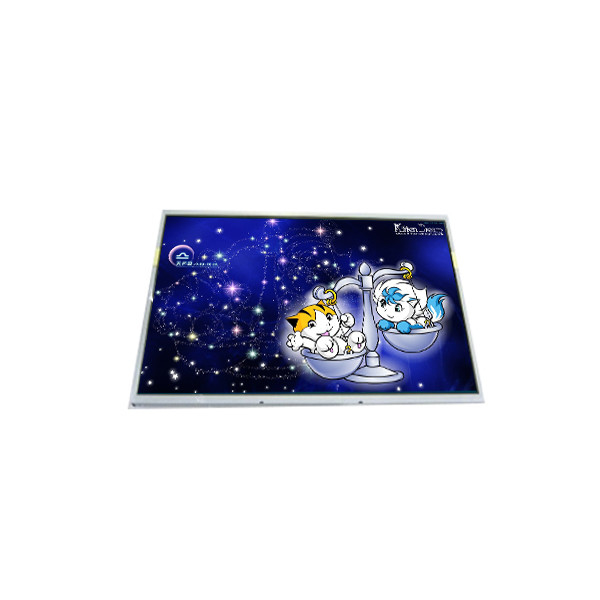

Original 23.0 inch 1920*1080 LCD Screen Display Panel LM230WF3-SLK3
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM230WF3-SLK3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LM230WF3-SLK3 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD 95PPI | Active Area(mm): | 509.184(W)×286.416(H) Mm |
| Outline(mm): | 533.2×312×11 (H×V×D) | Bezel Area(mm): | 513.8(W)×291.0(H) Mm |
| Good View At: | Symmetry | Used For: | Desktop Monitor |
| Voltage Supply: | 5.0V (Typ.) | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Product Description
Original 23.0 inch 1920*1080 LCD Screen Display Panel LM230WF3-SLK3
LM230WF3-SLK3 Product details :
| Brand | LG Display |
| Model P/N | LM230WF3-SLK3 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline (mm) | 533.2×312×11 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | 17S2PWLED, 30K hours, No Driver |
| Mass | 2.19/2.30Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), Connector30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Note : We have more than 10 years experience on lcd displays filed . Our LCD Display will be tested ok before shipping . So it is very safe for you to do lcd display business with us .
Because Our company have many LCD models, we can't uploaded real product pictures for each model, but we will send you the correct products. If you are worried about product problems, you can contact us before placing an order.
LM230WF3-SLK3 Shipping and Package :
LM230WF3-SLK3 Shipping Information:
1·Payment terms we only accept escrow services.
2·Items will be ship within 2 days of payment receive.
3·Standard shipping using international Airmail,Items ship from Hongkong and it takes 10-20 working days (2-4 weeks) to receive for most area.
4·If you do not receive item within 30 working days (6 weeks), please contact us to investigate the case.
LM230WF3-SLK3 Return Policy:
1·We appreciate your business and offer an instant 7 days return policy.(7 days after receive the items).
2·The returned item has to be in its original condition.
3·We are able to refund your money without shipping cost.
4·If you have any question, please contact us via Trademanager .
LM230WF3-SLK3 Notice:
1·Please be advised that the Customs Department of your country could impose duty or sales taxon your ordered item when it enters your country. we cannot be responsible for any tax or duty charged by your government on the purchase.
2·If you received a defective or incorrect item inside the parcel, please notify us and simply returnthe item for exchange.
3·Please feel free to contact me if you have any questions! We will reply to you in 24 hours.
LM230WF3-SLK3 FAQ:
Q: How do you ship my goods LM230WF3-SLK3 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LM230WF3-SLK3 ?
A: 90 days warranty .
Q: How can I trace my order of LM230WF3-SLK3 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of LM230WF3-SLK3 ?
A: Of course!If you make a large order, we will give you a discount.
