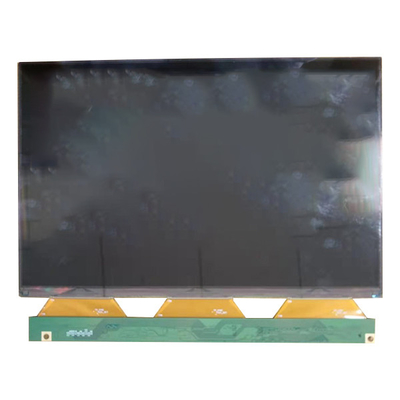

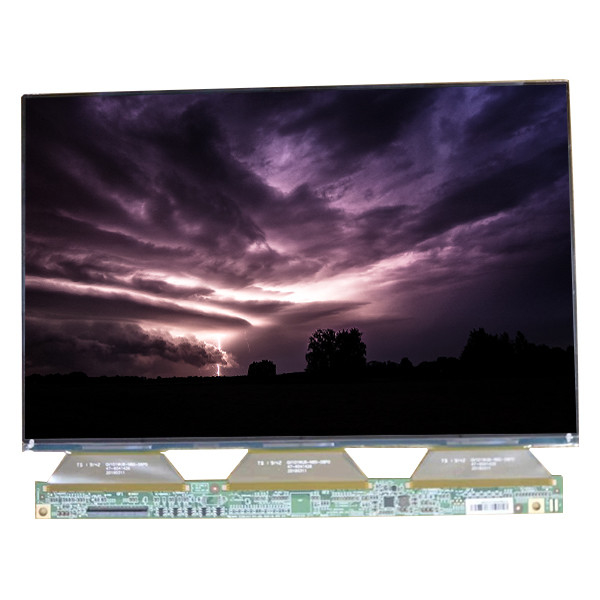

10.1 inch 1920×1200 QV101WUB-N80 LCD Monitors Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | QV101WUB-N80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | QV101WUB-N80 | Diagonal Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1200 [WUXGA] 224PPI | Active Area: | 216.806(H)×135.504(V) Mm |
| Outline Dim.: | 221.81(H)×145.5(V) Mm | Support Color: | 16.7M 72% NTSC |
| Transmittance: | 3.85% (Typ.)(with Polarizer) | Designed For: | Industrial |
Product Description
10.1 inch 1920×1200 QV101WUB-N80 LCD Monitors Screen Display
Product details :
| BOE LCD SCREEN QV101WUB-N80 | |
| manufacturer | BOE |
| Model Name | QV101WUB-N80 |
| screen size | 10.1 inch |
| Screen type | CELL, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1200 (WUXGA) 224PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 216.806 × 135.504 (H×V) |
| physical dimension | 221.81 × 145.5 (H×V×D) |
| surface treatment | Hard coating |
| Brightness | 0 cd/m² |
| Contrast | 900 : 1 (Typ.) (TM) |
| Best angle | Symmetry |
| Optical mode | ADS, Normally Black, Transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Responding time | 30 (Typ.)(Tr+Td) ms |
| Number of color | 16.7M 72% NTSC |
| Backlight type | No B/L |

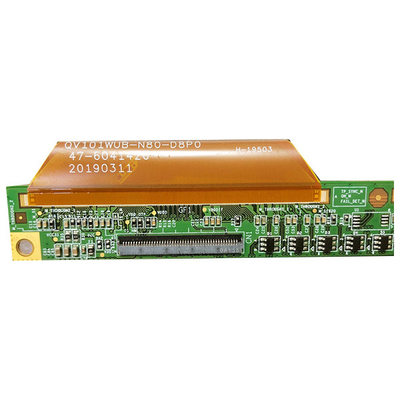

| Driver IC list | Built-in COG 3 source chips |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , Connector 45 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 10.1 inch 1920×1200 QV101WUB-N80 LCD Monitors Screen Display | |
Dear friend:
To place an order,please fill in your full name, mobile phone and full address, including your apartment number, street, city, region and country/region, and postal code to facilitate quick receipt of the goods.
Before purchasing the corresponding parts, please confirm that the specific parts of the machine are faulty before purchasing.Before and after the purchase, you can communicate with us if you have any questions. We are willing to do every service well, and we hope to be friends with you, and we hope you will buy again.
Quality Control:
Before delivery,each part has been tested with a dedicated instrument or motherboard to ensure normal operation.It is strongly recommended that the product be installed by professionals.
Shipping and Package :
About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Regardless reason, customer may return product during a period as specified below in eBay Return Policy Section, for a refund of purchase price less 20% restocking fee. The customer is responsible for all return shipping charges in all cases.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
Customer please request a Return Merchandise Authorization (RMA) prior to shipping product back, and is responsible for any shipping charges to ship the product back. Any return/exchange without RMA may be rejected. Please follow instructions in RMA to pack the product or it may be rejected.
FAQ:
Q: Can you give me a discount if I need a large quantity of QV101WUB-N80?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of QV101WUB-N80 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of QV101WUB-N80 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
