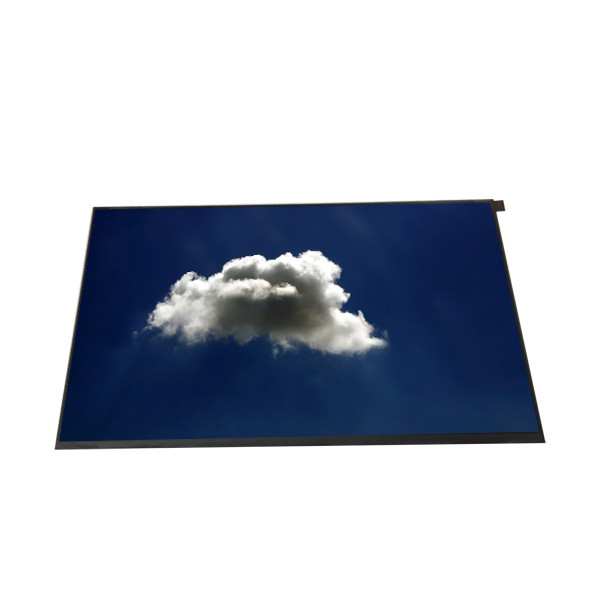

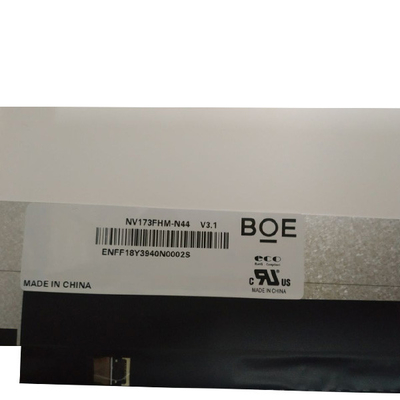

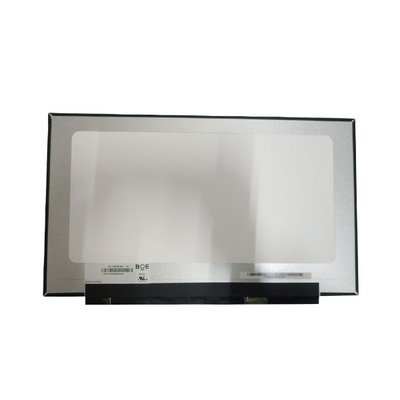

NV173FHM-N44 Matte 1920x1080 EDP 40Pin 17.3 inch 144HZ Laptop LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV173FHM-N44 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NV173FHM-N44 (BOE07B6) | Panel Size: | 17.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 127PPI | Display Area: | 381.888(W)×214.812(H) Mm |
| Outline Size: | 389.89(W)×238.012(H) ×3.5(D) Mm | Frequency: | 144Hz |
| Shape Style: | Flat (PCBA Flat, T3.4~4.0mm) | Application: | Laptop |
Product Description
NV173FHM-N44 Matte 1920x1080 EDP 40Pin 17.3 inch 144HZ Laptop LCD Screen Display
Product details :
| BOE LCD SCREEN NV173FHM-N44 (BOE07B6) | |
| Manufacturer | BOE |
| Model Name | NV173FHM-N44 (BOE07B6) |
| Screen Size | 17.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 127PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 381.89 × 214.81 (H×V) |
| Outline(mm) | 389.89 × 238.12 × 3.5 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 9.8 (Typ.)(Tr+Td)(with OD); 3 (Typ.)(G to G)(with OD) |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 10S6P WLED , 15K hours , With LED Driver |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop |
| Refresh Rate | 144Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NV173FHM-N44 Matte 1920x1080 EDP 40Pin 17.3 inch 144HZ Laptop LCD Screen Display | |
