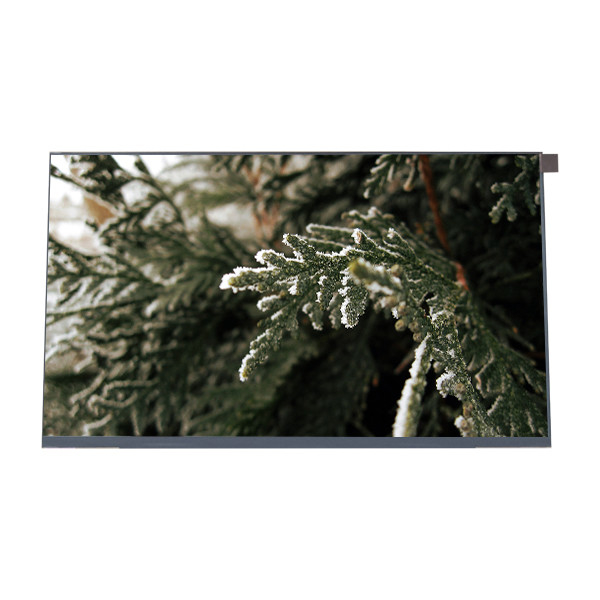

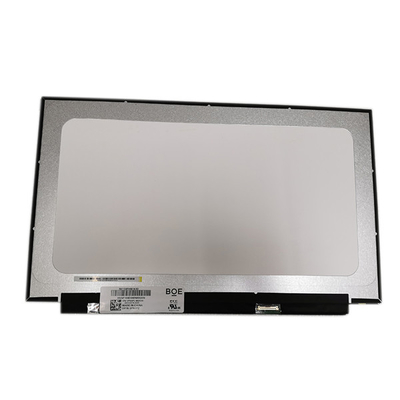

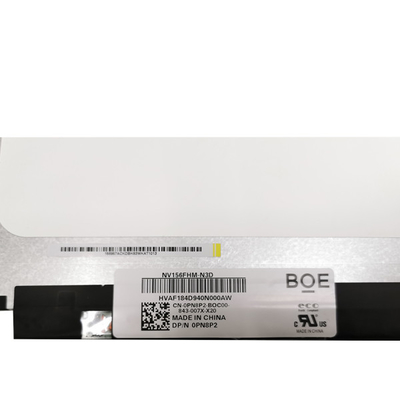

LCD Screen for NV156FHM-N3D 30 PIN Laptop Screen Resolution 1920×1080 15.6 inch
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV156FHM-N3D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NV156FHM-N3D (BOE078C) | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 141PPI | Active Area: | 344.16(H)×193.59(V) Mm |
| Outline Dim.: | 350.66(H)×216.68(V) ×3.2(D) Mm | Luminance: | 220 Cd/m² (Typ.) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
Product Description
LCD Screen for NV156FHM-N3D 30 PIN Laptop Screen Resolution 1920×1080 15.6 inch
Product details :
| BOE LCD SCREEN NV156FHM-N3D (BOE078C) | |
| Manufacturer | BOE |
| Model Name | NV156FHM-N3D (BOE078C) |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 216.68 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

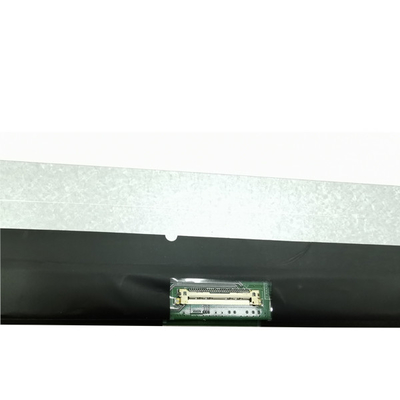

| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LCD Screen for NV156FHM-N3D 30 PIN Laptop Screen Resolution 1920×1080 15.6 inch | |
Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your laptop, if you have no idea, please ask us freely.
Please give us your correct contact details so that you can receive the items as early as possible.
If you want us to wirte a low price to avoid the custom tax, please advise us, and you should afford the risk yourself.
Payment:
ESCROW, TT, Western Union or Paypal is available for you.
Shipping and Package :
Delivery:
We can send out the items within 7 working days after payment confirmation.
The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.
If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of NV156FHM-N3D (BOE078C) ?
A: Of course!sample order is welcome !
Q: How to make payment of NV156FHM-N3D (BOE078C) ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of NV156FHM-N3D (BOE078C) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
