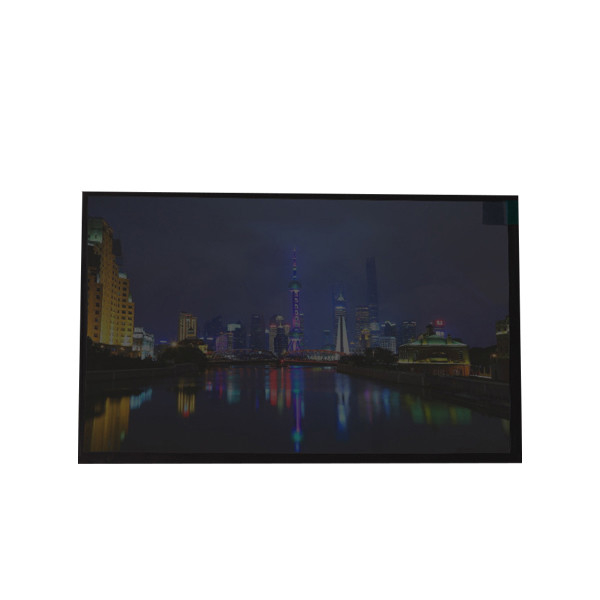

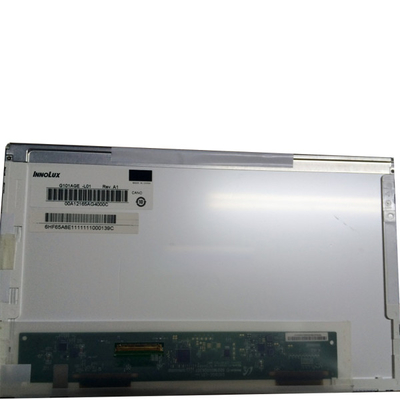

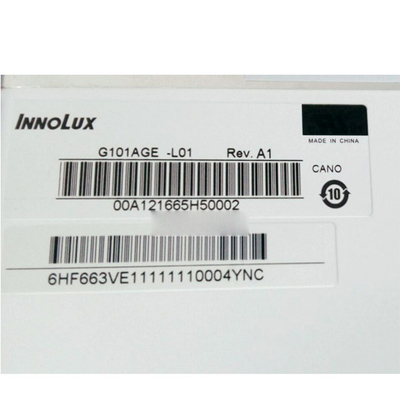

10.1 For Innolux 1024*600 LCD Screen Display Module Panel G101AGE-L01
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | G101AGE-L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G101AGE-L01 | Panel Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 (WSVGA) 117PPI | Active Area: | 222.72 × 125.28 (H×V) |
| Outline Dim.: | 235 × 143 × 5.2 (H×V×D) | Bezel Area: | 226.34 × 128.1 (H×V) |
| Voltage Supply: | 3.3V (Typ.) | Used For: | Industrial |
Product Description
10.1 For Innolux 1024*600 LCD Screen Display Module Panel G101AGE-L01
Product details :
| Innolux LCD SCREEN G101AGE-L01 | |
| Manufacturer | Innolux |
| Model Name | G101AGE-L01 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 117PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 222.72 × 125.28 (H×V) |
| Outline(mm) | 235 × 143 × 5.2 (H×V×D) |
| Bezel Area(mm) | 226.34 × 128.1 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 46% NTSC |
| Backlight | 11S2P WLED , 15K hours , With LED Driver |
| Mass | 185/195g (Typ./Max.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 10.1 For Innolux 1024*600 LCD Screen Display Module Panel G101AGE-L01 | |
