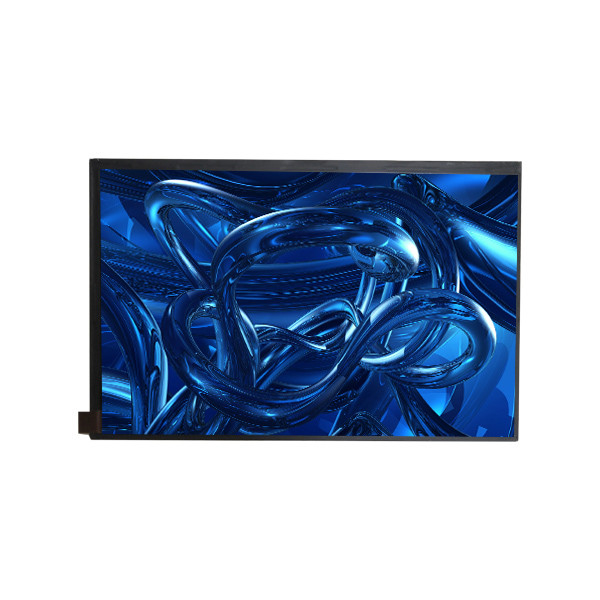

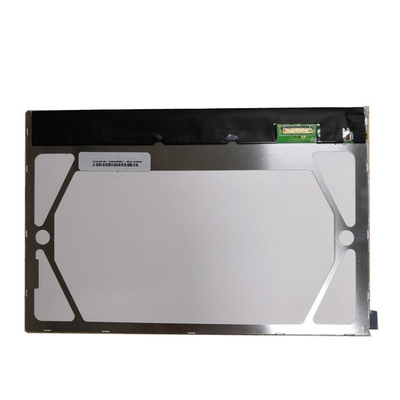

BOE NV101WXM-N51 A Grade LCD Screen Display Panel 30 Pin RGB 1280x800 IPS 10.1 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV101WXM-N51 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV101WXM-N51 (BOE070B) | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×800 (WXGA) 149PPI | Active Area(mm): | 216.96 × 135.6 (H×V) |
| Outline(mm): | 228.21 × 148.86 × 4.59 (H×V×D) | Treatment: | Glare (Haze 0%), Hard Coating (2H), Antireflection |
| Mass: | 145g (Max.) | Used For: | Pad & Tablet |
| High Light: | NV101WXM-N51 LCD Screen Display Panel,IPS LCD Screen Display Panel,RGB IPS LCD Screen |
||
Product Description
BOE NV101WXM-N51 A Grade lcd 30 pin 1280(RGB)×800 ips 10.1 inch lcd display
Product details :
| BOE LCD SCREEN NV101WXM-N51 (BOE070B) | |
| Manufacturer | BOE |
| Model Name | NV101WXM-N51 (BOE070B) |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.96 × 135.6 (H×V) |
| Outline(mm) | 228.21 × 148.86 × 4.59 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | WLED , With LED Driver |
| Mass | 145g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.3 , RBR (1.62G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE NV101WXM-N51 A Grade lcd 30 pin 1280(RGB)×800 ips 10.1 inch lcd display | |
payment:
We accept T/T & Western Union & PayPal
Shipping and Package :
Packing:
1. Normal packing
1) Replacement touch screen packed with Anti-static transparent plastic bags.
2) Wrap in protective air bubble bag.
3) Put into the foam boxes.
4) Pack with extra strong cartons.
2. Custom packing.
Logistics:
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account
Warranty:
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
We bear the shipping cost from return the part in guarantee day
3. If the items are defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
FAQ:
Q: Can you give me a discount if I need a large quantity of NV101WXM-N51 (BOE070B) ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NV101WXM-N51 (BOE070B) to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of NV101WXM-N51 (BOE070B) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods NV101WXM-N51 (BOE070B) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
