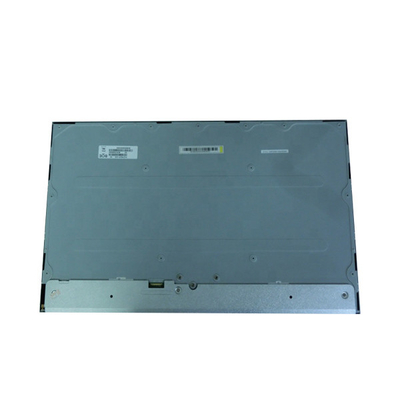

BOE TFT LCD Screen MV270QUM-N20 27.0 Inch RGB 3840X 2160 UHD 163PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV270QUM-N20 |
| Document: | MV270QUM-N20.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | MV270QUM-N20 | Diagonal Size: | 27.0 Inch |
|---|---|---|---|
| Pixel Format: | 3840(RGB)×2160 [UHD] 163PPI | Active Area: | 596.736(H)×335.664(V) Mm |
| Outline Dim.: | 608.8(H)×353.3(V) ×13.9(D) Mm | Support Color: | 1.07B 100% SRGB |
| Weight: | 3.22Kgs (Typ.) | Designed For: | Desktop Monitor |
| Highlight: | MV270QUM-N20 TFT LCD Screen,Symmetry TFT LCD Screen,UHD 163PPI TFT LCD Screen |
||
Product Description
Original BOE A grade supply MV270QUM-N20 27.0 inch TFT lcd screen
Product details :
| BOE LCD SCREEN MV270QUM-N20 | |
| Manufacturer | BOE |
| Model Name | MV270QUM-N20 |
| Screen Size | 27.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) 163PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 596.736 × 335.664 (H×V) |
| Outline(mm) | 608.8 × 353.3 × 13.9 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | TBD ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 1.07B 100% sRGB |
| Backlight | 19S4P WLED , 30K hours , No Driver |
| Mass | 3.22Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector |
| Voltage Supply | 10.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Original BOE A grade supply MV270QUM-N20 27.0 inch TFT lcd screen | |
Thank you for choosing us. We will do our best to support you.
100% Tested Before Shipping.
QUALITY IS 100% GURANTEED, IF YOU NEED LCDS IN BIG QTY, PLS CONTACT US FOR DISCOUNT.
Shipping and Package :
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
About Shipping:
1 , Pls make sure the lcd model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3 , Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
Warranty and Refund:
1,Each lcd panel will be tested strictly before shipment to make sure 100% working well.
2,Please also test them within 3 business days upon receipt of the parcel.BUT DO NOT INSTALL before testing(only connect LCD to mainboard for testing).
3, we provide 6-month warranty for all products, but the original labels should be kept well.
lf the goods you received is damaged, wrong or defective, please contact us first for a new replacement or refund.Good communication is the first key to more cooperation.
FAQ:
Q: Can you give me a discount if I need a large quantity of MV270QUM-N20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of MV270QUM-N20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of MV270QUM-N20 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty .
