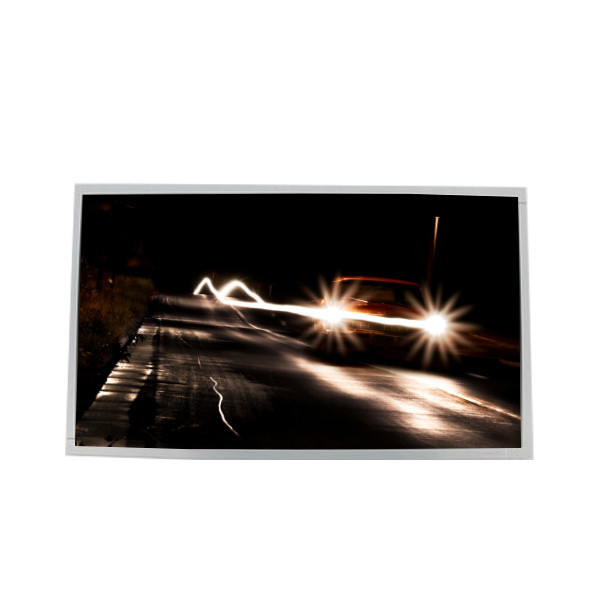

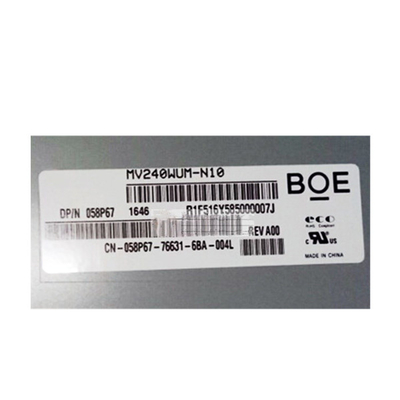

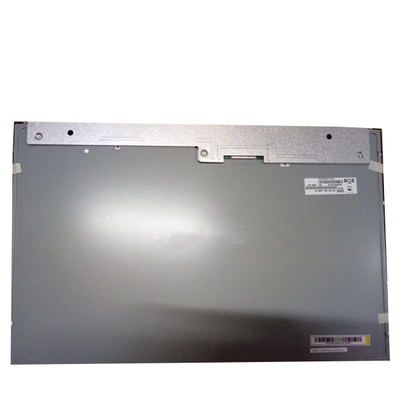

BOE MV240WUM-N10 24.0 Inch IPS LCD Display Panel Module LVDS Interface Laptop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV240WUM-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | MV240WUM-N10 | Screen Size: | 24.0 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1200 (WUXGA) 94PPI | Active Area(mm): | 518.4 × 324 (H×V) |
| Outline(mm): | 546.4 × 352 × 11.7 (H×V×D) | Bezel Area(mm): | 522.4 × 328 (H×V) |
| Mass: | 2.57Kgs (Typ.) | Used For: | Desktop Monitor / Medical Imaging |
| High Light: | MV240WUM-N10 IPS lcd display,24.0 Inch IPS lcd display,LVDS Interface lcd display panel |
||
Product Description
BOE MV240WUM-N10 24.0 INCH desktop computer laptop monitor IPS lcd display panel module 1920*1200 LVDS interface
Product details :
| BOE LCD SCREEN MV240WUM-N10 | |
| Manufacturer | BOE |
| Model Name | MV240WUM-N10 |
| Screen Size | 24.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1200 (WUXGA) 94PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 518.4 × 324 (H×V) |
| Outline(mm) | 546.4 × 352 × 11.7 (H×V×D) |
| Bezel Area(mm) | 522.4 × 328 (H×V) |
| Treatment | Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 13S3P WLED , 30K hours , No Driver |
| Mass | 2.57Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE MV240WUM-N10 24.0 INCH desktop computer laptop monitor IPS lcd display panel module 1920*1200 LVDS interface | |
Advantages:
1. Low price directly from factory
2. High quality and fast delivery
3. Four months warranty
4. Sending tracking information in time
Payment:
Payment: T/T, Paypal, Alibaba Escrow Order and so on
Shipping and Package :
~ We will ship within 3 days since we receive the payments from the customers
~Shipping method:DHL,UPS,Fedex and your forwarder to pick up
~Package :Original factory package /Fragile Customized Package
PACKAGE:
Stadard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.
If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.
Kindly Notice:
1. Import duties taxes and other customs related charges are not included in the price
Important Tips:
1. Please keep the warranty label intact, any broken label will cause warranty to be ceased automatically.
2. Please check carefully if the cargo in good package and function well when you receive it.
FAQ:
Q: How long will I receive my goods MV240WUM-N10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of MV240WUM-N10 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of MV240WUM-N10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90 days warranty .
