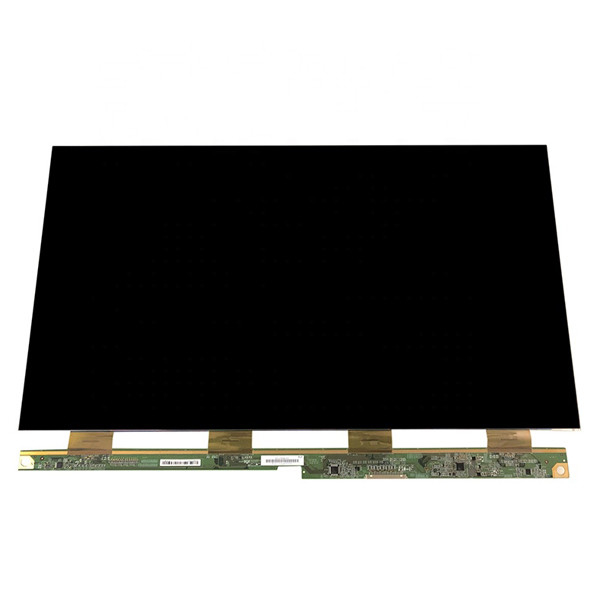

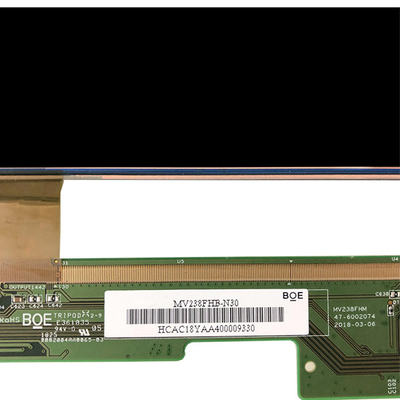

23.8 Inch BOE MV238FHB-N30 LCD Screen For Desktop Monitor 1920X1080
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHB-N30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | MV238FHB-N30 | Panel Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 92PPI | Display Area: | 527.04(W)×296.46(H) Mm |
| Outline Size: | 534.04(W)×307.76(H) ×1.32(D) Mm | Brightness: | 0 Cd/m² |
| Panel Weight: | 538g (Typ.) | Application: | Desktop Monitor |
| High Light: | 23.8 Inch desktop LCD monitor,MV238FHB-N30 LCD Screen for desktop,Antiglare LCD Screen for desktop |
||
Product Description
23.8 inch BOE MV238FHB-N30 1920*1080 LCD Screen for desktop monitor
Product details :
| BOE LCD SCREEN MV238FHB-N30 | |
| Manufacturer | BOE |
| Model Name | MV238FHB-N30 |
| Screen Size | 23.8 inch |
| Screen Type | CELL, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 92PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 527.04 × 296.46 (H×V) |
| Outline(mm) | 534.04 × 307.76 × 1.32 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.1% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 74% NTSC |
| Backlight | No B/L , No Driver |
| Mass | 538g (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 4 source chips |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 23.8 inch BOE MV238FHB-N30 1920*1080 LCD Screen for desktop monitor | |
Useful news:
1. We ship within 2~5 days as soon as possible；
2. We support sample service, MOQ = 1；
3. We have strong R & D and production capabilities and have sufficient inventory；
4. We will innovate and develop new products every month；
5. We are OEM / ODM；
6. We are at your service 24 hours. Product quality issues can be returned at any time；
7. We ship your products with the fastest and best logistics；
About the quality:
All of our product will be testing before shipping . So you can be assured the quality of ourproducts .
However, lf you found any problem after received the goods , Please feel free contact toour saleman .
We will be willing to deal with your problem at the first time .
Shipping and Package :
Transport and Packing process:
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-3 working days
500 PCS or More orders:5-15 working days
Professional 360° safe
pack Vacuum bag→5 layer corrugated carton→thick pearl cotton protection
About the warranty and return:
-- 1.We accept returns for replacement or refund within 5 days after receipt of item(s).Items MUST be in their original condition, not worn or altered.
- 2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.
FAQ:
Q: Can You declare my order of LCD panel glass BOE MV238FHB-N30 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of MV238FHB-N30 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can I pay my goods MV238FHB-N30 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods BOE MV238FHB-N30 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
