LCD Screen Display Panel

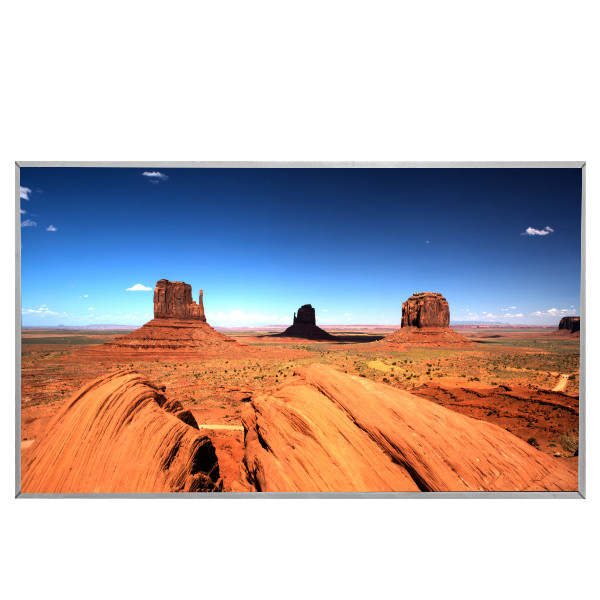

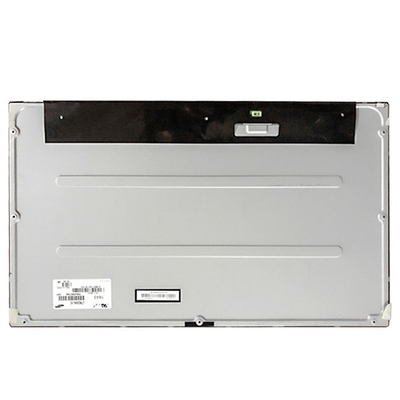

MV230FHM-N10 23.0 Inch LCD Screen Display Panel RGB 1920X1080 IPS LCD Display

All Category

Floor Standing Digital Signage

MV230FHM-N10 23.0 Inch LCD Screen Display Panel RGB 1920X1080 IPS LCD Display

Brand Name:	BOE
Model Number:	MV230FHM-N10
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Panel Model:

MV230FHM-N10

Panel Size:

23.0 Inch

Pixel Number:

1920(RGB)×1080 (FHD) 95PPI

Active Area(mm):

509.184 × 286.416 (H×V)

Outline(mm):

522.4 × 305.6 × 13.4 (H×V×D)

Bezel Area(mm):

512.4 × 289.6 (H×V)

Mass:

2.12Kgs (Typ.)

Application:

Desktop Monitor / Medical Imaging

Supply Ability:

100000 Unit/Units per Month

Highlight:

MV230FHM-N10 LCD Screen Display Panel

LVDS interface LCD Screen Display Panel

95PPI IPS LCD Display

Product Description

MV230FHM-N10 Original new 23.0 inch LCD Panel 1920(RGB)×1080 IPS LCD Display LVDS interface for industrial machine

Product details :

BOE LCD SCREEN MV230FHM-N10
Manufacturer	BOE
Model Name	MV230FHM-N10
Screen Size	23.0 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	1920(RGB)×1080 (FHD) 95PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	509.184 × 286.416 (H×V)
Outline(mm)	522.4 × 305.6 × 13.4 (H×V×D)
Bezel Area(mm)	512.4 × 289.6 (H×V)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Min.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	14 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Color Depth	16.7M 99% sRGB
Backlight	18S3P WLED , 30K hours , No Driver
Mass	2.12Kgs (Typ.)
Used for	Desktop Monitor / Medical Imaging
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
MV230FHM-N10 Original new 23.0 inch LCD Panel 1920(RGB)×1080 IPS LCD Display LVDS interface for industrial machine

Packaging Deatils:

Standard package

Delivery Detail: 1-2 days after payment

Shipment Information:

All the parts will be tested before shipment.

We can ship to you by DHL / FedEX / TNT / UPS / EMS… ,

you can choose the shipping method you prefer.

The buyer is responsible for any tax or duty charged by their country.

Payment Information:

T/T (Wire Transfer) / PayPal / western Union / MoneyGram

Shipping and Package :

MV230FHM-N10 23.0 Inch LCD Screen Display Panel RGB 1920X1080 IPS LCD Display 0

Shipping:

Remind to dear customers:most of place we send by DHL,if your city is remote area pls contact us.Delivery time is within 3-7 business days to the worldwide normally.Import duties taxes and charges are not included in the item price or shipping charges.

FAQ:

Q: How long will I receive my goods MV230FHM-N10 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of MV230FHM-N10 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of MV230FHM-N10?

A: Of course!sample order is welcome !

Q: How can I trace my order of MV230FHM-N10 ?

A: we will give you tracking number then you can trace your order from website.
