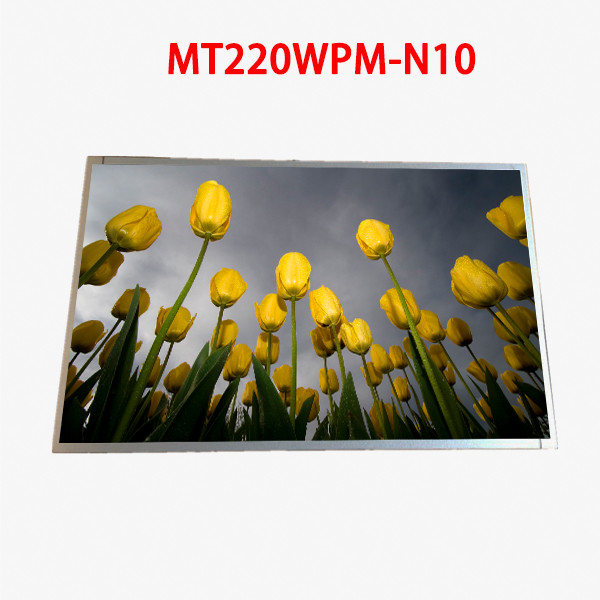

MT220WPM-N10 22.0 inch LCD Screen Display Panel RGB 1680X1050 LVDS IPS LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MT220WPM-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | MT220WPM-N10 | Panel Size: | 22.0" |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+, 90PPI | Display Area: | 473.76(W)×296.1(H) Mm |
| Bezel Opening: | 477.7(W)×300.1(H) Mm | Outline Size: | 493.7(W)×320.1(H) ×10.7(D) Mm |
| Weight: | 1.83Kgs (Typ.) | Application: | Desktop Monitor |
| High Light: | MT220WPM-N10 LCD Screen Display Panel,LCD Screen Display Panel Antiglare,LVDS IPS LCD Display |
||
Product Description
MT220WPM-N10 Original new 22.0 inch lcd panel 1680(RGB)×1050 IPS LCD Display LVDs
Product details :
| BOE LCD SCREEN MT220WPM-N10 | |
| Manufacturer | BOE |
| Model Name | MT220WPM-N10 |
| Screen Size | 22.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 90PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 473.76 × 296.1 (H×V) |
| Outline(mm) | 493.7 × 320.1 × 10.7 (H×V×D) |
| Bezel Area(mm) | 477.7 × 300.1 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR＞10) |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 3 strings WLED , 40K hours , No Driver |
| Mass | 1.83Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| MT220WPM-N10 Original new 22.0 inch lcd panel 1680(RGB)×1050 IPS LCD Display LVDs | |
Please confirm that the specific parts of your machine are faulty before purchasing the corresponding parts. If you cannot confirm the specific parts failure, please do not purchase it.thank you very much!
Some of the internal parts are detached from the machine, it is not full new, but has been tested and 100% working perfect. Please use it with confidence. If you do not agree please do not buy!thank you!
Shipping and Package :
About shipping method:
Due to the continuous impact of the COVID-19 epidemic, the logistics time limit is unstable. Some channels may be suspended at any time or some channels warehouses have a large backlog of goods. We would like to choose which logistics is more stable, fast and safe at certain times for buyer.
Such as buyer choose DHL, we may ship by the same level express like TNT, Fedex or UPS.If you need specified logistics, please tell us in advance.
International Orders:
1.Buyer is responsible for all customs fees and import taxes.
2.International orders may take several weeks longer than expected to arrive due to delays in customs processing.
3.We usually declare low prices by default, which is about 1/2 or 1/3 of the product price.This helps most buyers reduce tariffs, but if you encounter a customs declaration, please contact us and we will reply to you at any time.(If sending to Brazil, we have to declare the actual order amount)
4.And to send to South Korea via Fedex or DHL , we to declare actual price,the recipient needs to provide a customs clearance serial number, for example: "P123456789123" . Please provide us with the customs clearance serial number.
About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
FAQ:
Q: How can I trace my order of MT220WPM-N10 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can I pay my goods BOE MT220WPM-N10 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods MT220WPM-N10 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of BOE MT220WPM-N10 ?
A: 90 days warranty .
