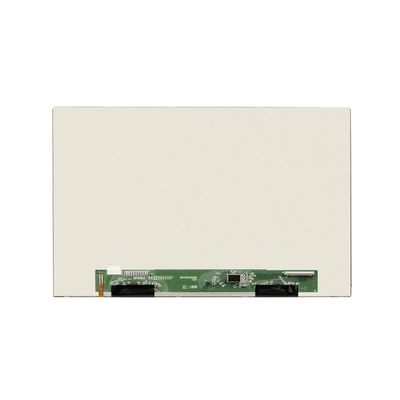

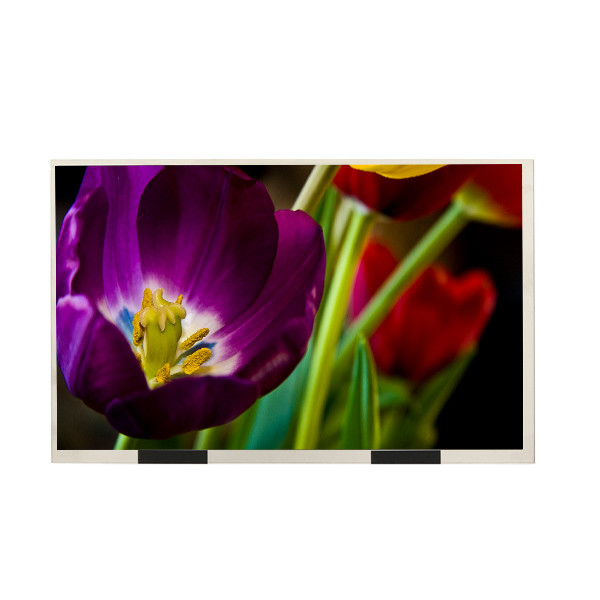

10.1 Inch EE101IA-01D LCD Display Screen 1280X800 HD Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | EE101IA-01D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | EE101IA-01D | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×800 (WXGA) 149PPI | Active Area(mm): | 216.96 × 135.6 (H×V) |
| Outline(mm): | 223.95 × 144.24 × 1.07 (H×V×D) | Color Depth: | 16.7M 50% NTSC |
| Mass: | 80.0g (Typ.) | Used For: | Pad & Tablet |
| High Light: | EE101IA-01D LCD Display screen,Hard coating LCD Display screen |
||
Product Description
10.1 inch EE101IA-01D 1280*800 LCD Display screen HD desktop on-board monitor LCD Display
Product details :
| Innolux LCD SCREEN EE101IA-01D | |
| Manufacturer | Innolux |
| Model Name | EE101IA-01D |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.96 × 135.6 (H×V) |
| Outline(mm) | 223.95 × 144.24 × 1.07 (H×V×D) |
| Treatment | Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 5.4% (Typ.) |
| Color Depth | 16.7M 50% NTSC |
| Backlight | No B/L , No Driver |
| Mass | 80.0g (Typ.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG HX8288*4, HX8695*1 |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Voltage Supply | 2.5/8.2/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 10.1 inch EE101IA-01D 1280*800 LCD Display screen HD desktop on-board monitor LCD Display screen can be customized | |
