9 Inch Innolux DJ090IA-01A TFT LCD Display 750nits IPS LVDS 40pins HD For Outdoor Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | DJ090IA-01A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DJ090IA-01A | Screen Size: | 9.0 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×720 (WXGA) 163PPI | Active Area(mm): | 198.912 × 111.888 (H×V) |
| Outline(mm): | 211.2 × 125.3 × 9.55 (H×V×D) | Color Depth: | 16.7M 70% NTSC |
| Mass: | 230g (Max.) | Used For: | Outdoor High Brightness Automotive Display |
| High Light: | IPS LVDS TFT LCD display,TFT LCD display 750nits |
||
Product Description

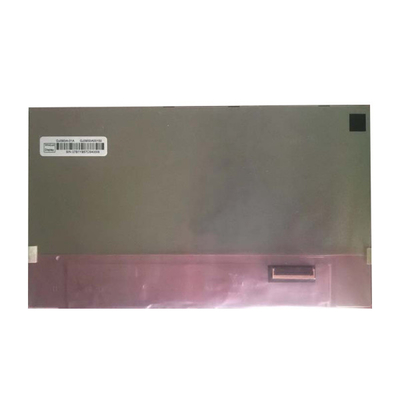

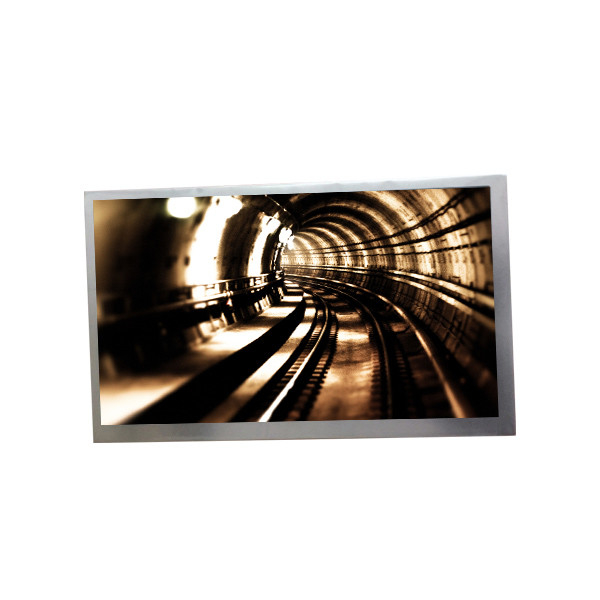

9 inch 1280x720 Innolux DJ090IA-01A High Brightness 750 IPS lvds 40pins HD TFT LCD display
Product details :
| Innolux LCD SCREEN DJ090IA-01A | |
| Manufacturer | Innolux |
| Model Name | DJ090IA-01A |
| Screen Size | 9.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×720 (WXGA) 163PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 198.912 × 111.888 (H×V) |
| Outline(mm) | 211.2 × 125.3 × 9.55 (H×V×D) |
| Bezel Area(mm) | 201.912 × 114.888 (H×V) |
| Treatment | Antiglare |
| Luminance | 750 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 15/10 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Backlight | 7S4P WLED , 20K hours , No Driver |
| Mass | 230g (Max.) |
| Used for | Outdoor High Brightness Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| 9 inch 1280x720 Innolux DJ090IA-01A High Brightness 750 IPS lvds 40pins HD TFT LCD display for Outdoor screen | |
Welcome to Dear buyer:
Thank you for choosing us. We have 10 years of experience in theelectronics industry. We provide excellent quality and affordable price.We have professional customer service staff and welcome to consult.
If you have more products,please contact us and we will provide youwith a more affordable price.
Payment:
1. Please make sure your payment account is available before purchasing the item. We support a large number of payment methods for your convenience.
2. All payments must be made within 7 days after the item is photographed. If you really can't pay for the item, please contact us first and we'll help you out.
3. If you have any other requirements for the product, please write it in the remarks, or notify the customer service,and the customer service will make a note for you.
Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
Shipping:
1,Shipping via China Post Registered Air Mail or ePacket.
2,We will send out your goods within 3 working days after we get your order .
3,Normally , you can get the goods within 27 calendar days .
4,Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
Guarantee:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days.We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
RMA not acceptable due to ordering the wrong model.
Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: How to order DJ090IA-01A ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: What happen if lcd screen DJ090IA-01A I received can't work ?
A: Our item DJ090IA-01A was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How long the warranty of TFT-LCD DJ090IA-01A ?
A: 90 DAYS.
