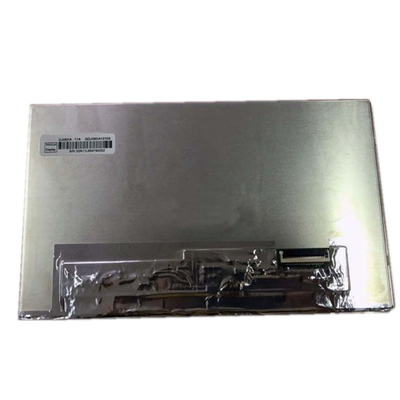

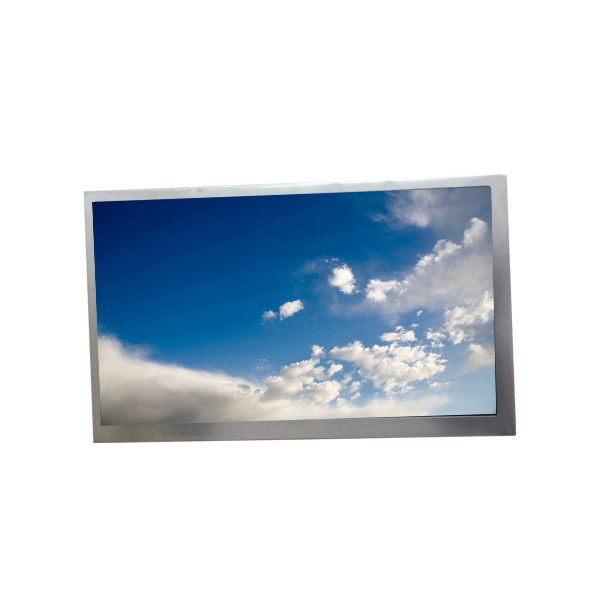

Innolux DJ080IA-11A LCD Screen Display Panel 1280X720 8 Inch TFT IPS LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | DJ080IA-11A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DJ080IA-11A | Screen Size: | 8.0 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×720 (WXGA) 184PPI | Active Area(mm): | 176.64 × 99.36 (H×V) |
| Outline(mm): | 192.8 × 116.9 × 9.85 (H×V×D) | Color Depth: | 262K/16.7M 70% NTSC |
| Mass: | 205g (Max.) | Used For: | Automotive Display |
| High Light: | DJ080IA-11A LCD Screen Display Panel,Antiglare Symmetry LCD Screen Display Panel,TFT IPS LCD panel |
||
Product Description
Innolux DJ080IA-11A 8 inch 1280*720 tft ips lcd panel display
Product details :
| Innolux LCD SCREEN DJ080IA-11A | |
| Manufacturer | Innolux |
| Model Name | DJ080IA-11A |
| Screen Size | 8.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×720 (WXGA) 184PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 176.64 × 99.36 (H×V) |
| Outline(mm) | 192.8 × 116.9 × 9.85 (H×V×D) |
| Bezel Area(mm) | 179.64 × 102.36 (H×V) |
| Treatment | Antiglare |
| Luminance | 750 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 70% NTSC |
| Backlight | 6S4P WLED , 20K hours , No Driver |
| Mass | 205g (Max.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
| Innolux DJ080IA-11A 8 inch 1280*720 tft ips lcd panel display 8 inch lcd module with HD-MI to lvds controller board | |
