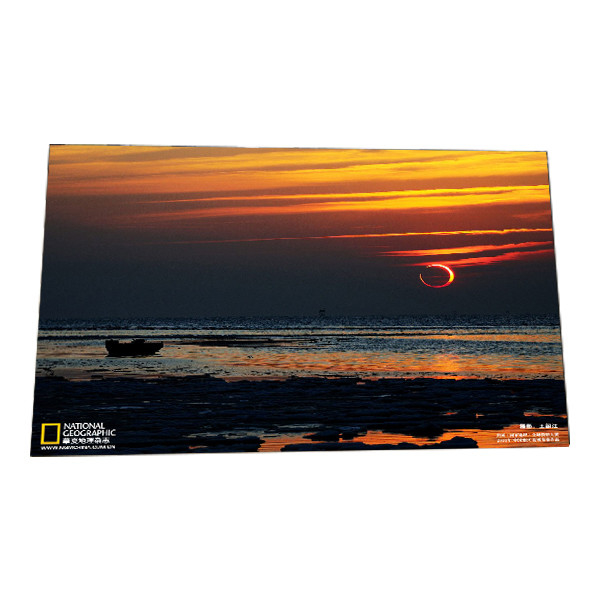

LM240WUC-SSA1 24.0 inch tft Industrial LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM240WUC-SSA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LM240WUC-SSA1 | Diagonal Size: | 24.0" |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1200, WUXGA 94PPI | Active Area: | 518.4(W)×324(H) Mm |
| Outline Dim.: | 528.2(W)×339.6(H) ×13.9(D) Mm | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Best View On: | Symmetry | Designed For: | Desktop Monitor、Industrial |
| Highlight: | HV430FHB-N10 Open Cell LCD panel,43.0 Inch Open Cell LCD panel,Symmetry TV screen replacement |
||
Product Description
LM240WUC-SSA1 24.0 inch tft Industrial LCD Panel Display
LM240WUC-SSA1 Product details :
| Brand | LG Display |
| Model P/N | LM240WUC-SSA1 |
| Diagonal Size | 24.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 94PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 518.4(W)×324(H) mm |
| Bezel Opening | - |
| Outline Size | 528.2(W)×339.6(H) ×13.9(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 100% sRGB |
| Lamp Type | 16S4P WLED , 30K hours , Without Driver |
| Frequency | 100Hz |
| Touch Screen | Without |
| Panel Weight | 1.93/2.03Kgs (Typ./Max.) |
| Application | Desktop Monitor,Industrial |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Thanks for your inquiry.
Would you please provide the links for your interested products?
We have plenty of such cases in stock. Could you advise how many pcs you want ? We’d like to offer you our latest discount.
You are welcome to add our mailbox:darian@yongs-hk.com for further discussion. We are expecting to establish long term relationship with you.
Cenerally ,we would arrange your product within 2-3 business days upon receipt of your payment.
Normally international shipping would be slower than domestic. It usually takes 7-21 business days by China Post and 3-15 business days by EMS/Fedex to your country . And sometimes if some uncontrollable situations occur , such as bad
weather, holiday , etc ,it would be slower than that.
Thank you for understanding . Welcome your order . Thank you.
LM240WUC-SSA1 Product Details:
- Conditions: Before sending the project, We will conduct multiple tests perfect work, the quality is 100% guaranteed.
- If you’re not sure if it’s the right item you need, or you need more quantity . Please contact me before ordering.
- Original LCD Screen and tested before sending.
Friendly Reminder :
- Installation guide not included, we are not responsible for any damage caused by installation of this accessory, please be sure you know how to install before bid.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.
- We only accept return in original condition and strongly recommend customer to test item before installation.
LM240WUC-SSA1 Shipping and Package :
LM240WUC-SSA1 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
LM240WUC-SSA1 Shipping:
We will ship out your items within 1-5 business days after the payment is cleared.
Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
LM240WUC-SSA1 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of LM240WUC-SSA1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of LM240WUC-SSA1 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LM240WUC-SSA1 ?
A: Of course!If you make a large order, we will give you a discount.
