BOE 21.5 Inch HT215F01-100 Desktop LCD Monitor 1920X1080 TFT LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HT215F01-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HT215F01-100 | Screen Size: | 21.5 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 102PPI | Active Area(mm): | 476.64 × 268.11 (H×V) |
| Outline(mm): | 495.6 × 292.2 × 10.7 (H×V×D) | Bezel Area(mm): | 479.8 × 271.3 (H×V) |
| Mass: | 1.72Kgs (Typ.) | Used For: | Desktop Monitor |
| High Light: | Hard coating desktop LCD monitor,HT215F01-100 desktop LCD monitor,Desktop Monitor TFT LCD display panel |
||
Product Description

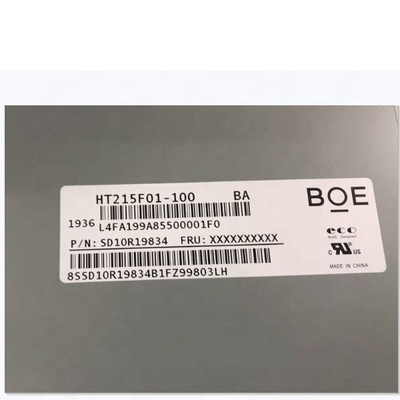

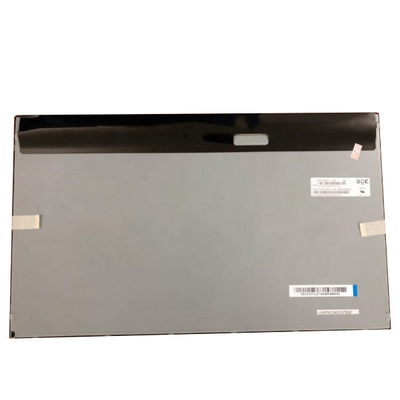

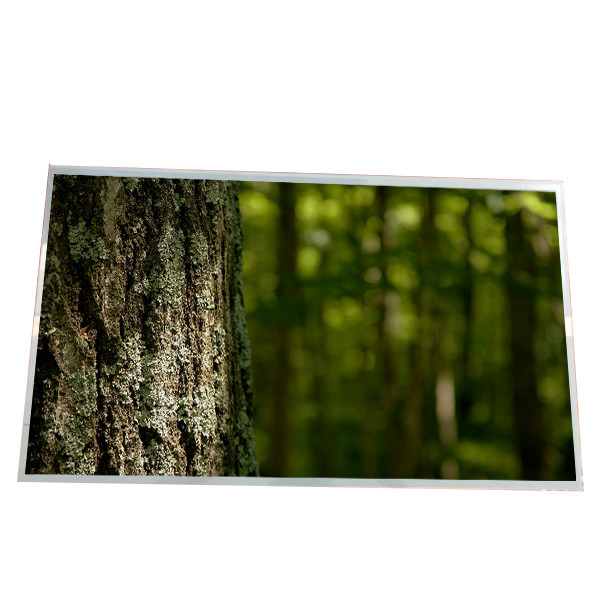

Original BOE 21.5 inch HT215F01-100 desktop monitor lcd 1920*1080 TFT LCD display panel
Product details :
| BOE LCD SCREEN HT215F01-100 | |
| Manufacturer | BOE |
| Model Name | HT215F01-100 |
| Screen Size | 21.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 102PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 476.64 × 268.11 (H×V) |
| Outline(mm) | 495.6 × 292.2 × 10.7 (H×V×D) |
| Bezel Area(mm) | 479.8 × 271.3 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 30K hours , No Driver |
| Mass | 1.72Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 10-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Original BOE 21.5 inch HT215F01-100 desktop monitor lcd 1920*1080 TFT LCD display panel | |
If you need a large number of our products,please contact us, the price is excellent, welcome to buy. We also support custom products. We have been selling in the industry for more than ten years,with rich customer service experience, if you encounter models that we have not released products, please contact us, we have more than 10000 different products waiting to be uploaded to the store for sale HMI touch screen, LCD screen, A series of products such as protective film, key film, shell, key strip, etc.
Payment:
1. Please make sure your payment account is available before purchasing the item. We support a large number of payment methods for your convenience.
2. All payments must be made within 7 days after the item is photographed. If you really can't pay for the item, please contact us first and we'll help you out.
3. If you have any other requirements for the product, please write it in the remarks, or notify the customer service,and the customer service will make a note for you.
Shipping and Package :
Shipping:
1. We will test them strictly before shipping.
2. We will ship it within 3 working days after we get the order.
3. The delivery time normally will be 7 to 50 days, which will be different for different countries. You can choose AliExpress Standard Shipping,It is faster than others.
4. * United States / United Kingdom / Australia may take 7-30 working days.
5. * Canada may take 7-35 working days.
6. * France / Spain / Germany may take 7-30 working days.
7. * Eastern Europe may take 16-30 working days.
8. * Italy / Brazil / South America may take 30-50 working days.
9. * Shipped by DHL Express: 7-12 working days (you need to pay extra fee).
Refund&Exchange:
If you are not satisfied with your purchase , you can exchange the items received but you must contact us within 3days of the receipt of your order ,but you should pay all additional shipping fee incurred and the items returned should be kept in their original status .
If you wish to exchange defective or incorrect shipped goods please contact us within 3days after receiving the goods .
Please note that for exchange part we will ship it out as soon as we get the returned one
Note:
The screens you are purchasing are used, may have signs of use, such as scratches or marks, but we already tested them before shipping, so don’t worry about the quality.
FAQ:
Q: How long will I receive my goods HT215F01-100 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of HT215F01-100 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of HT215F01-100 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of HT215F01-100 ?
A: The order will be shipped within 2-3 working days after received your payment.
