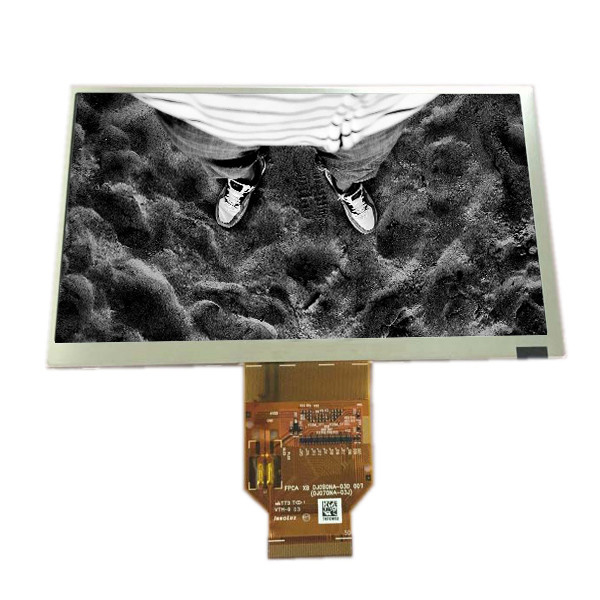

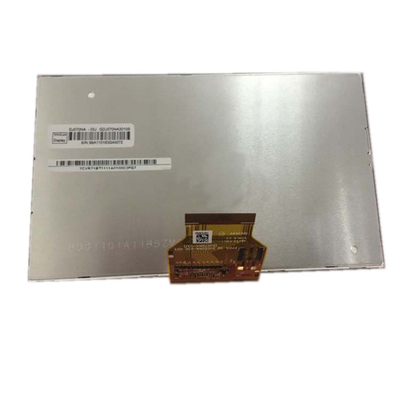

Antiglare 50 Pins FPC TFT LCD Screen Panel 800x480 DJ070NA-03J
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | DJ070NA-03J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | DJ070NA-03J | Diagonal Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 (WVGA) 134PPI | Active Area: | 154.08 × 85.92 (H×V) |
| Outline Dim.: | 164.9 × 100 × 6 (H×V×D) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| Color Depth: | 262K 50% NTSC | Designed For: | Automotive Display |
| High Light: | 50 Pins FPC TFT LCD Screen,DJ070NA-03J tft lcd screen panel,Antiglare tft lcd screen panel |
||
Product Description
Hight quality 50 pins 7" tft lcd screen panel 800x480 DJ070NA-03J best price
Product details :
| Innolux LCD SCREEN DJ070NA-03J | |
| Manufacturer | Innolux |
| Model Name | DJ070NA-03J |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 134PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 154.08 × 85.92 (H×V) |
| Outline(mm) | 164.9 × 100 × 6 (H×V×D) |
| Bezel Area(mm) | 157.08 × 88.92 (H×V) |
| Treatment | Antiglare |
| Luminance | 750 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% NTSC |
| Backlight | WLED , 20K hours , No Driver |
| Mass | 130g (Typ.) |
| Used for | Automotive Display |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit) , 50 pins FPC |
| Voltage Supply | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
| Hight quality 50 pins 7" tft lcd screen panel 800x480 DJ070NA-03J best price | |
Welcome to our Shop:
If you need more quantity or more products,Please contact us.
Payment:
1.We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2.If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3
Shipment:
1.- We can ship the products all the world.Free shipping by post air mail.
2.- DHL, FedEx, TNT, UPS, EMS, aliexpress standared shipping are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you make a order.
5.- You can track the situation of your product website after they are shipped out.
Warranty:
1.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).returns if parts that have been used the machines will not be acceptable.
2.- Once we get the returned items, we will send the replaced ones back as soon as possible.
3.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation the parts.
FAQ:
Q: How to order lcd screen DJ070NA-03J ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of DJ070NA-03J ?
A: 90 days.
Q: What happen if the Innolux DJ070NA-03J I received can't work ?
A: Our lcd panel DJ070NA-03J was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low price of my Innolux DJ070NA-03J lcd display when shipping?
A: Yes , please inform us the value you want .
Please note:
We test all products before sending. But we can't control everything, and the screen is easily damaged during transportation. So please test the product before installation. If you find some problems, please do not install and contact us. If you have not tested the installation, we will not provide after-sales service and refund service. We are not responsible for all problems that occur during the installation process.
Shipping and Package :
we can help you to find your wanna items in the wholesale Market, and Please send the detailed list to us.
