HM215WU1-500 LCD Screen Display Panel 21.5 Inch 200 Cd/M2 LVDS 30 Pins Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HM215WU1-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HM215WU1-500 | Diagonal Size: | 21.5 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 102PPI | Active Area: | 476.64(H)×268.11(V) Mm |
| Outline Dim.: | 495.6(H)×292.2(V) ×10.7(D) Mm | Bezel Area: | 479.8(H)×271.3(V) Mm |
| Weight: | 1.79Kgs (Typ.) | Designed For: | Desktop Monitor |
| High Light: | HM215WU1-500 LCD Screen Display Panel,LVDS LCD Screen Display Panel |
||
Product Description

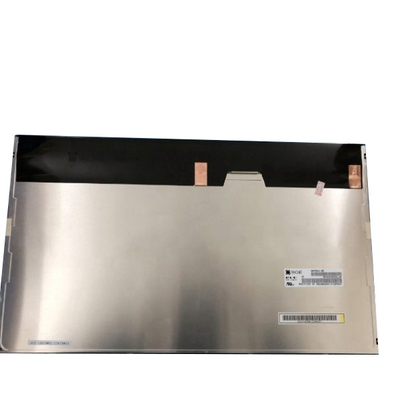

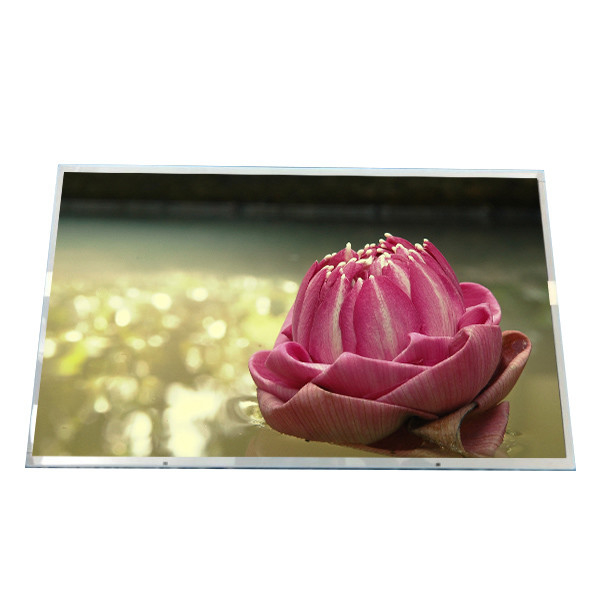

HM215WU1-500 original new A+ 21.5 inch LCD Display LCD panel
Product details :
| BOE LCD SCREEN HM215WU1-500 | |
| Manufacturer | BOE |
| Model Name | HM215WU1-500 |
| Screen Size | 21.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 102PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 476.64 × 268.11 (H×V) |
| Outline(mm) | 495.6 × 292.2 × 10.7 (H×V×D) |
| Bezel Area(mm) | 479.8 × 271.3 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/25/40 (Typ.)(CR≥10) |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 16S4P WLED , 30K hours , No Driver |
| Mass | 1.79Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| HM215WU1-500 original new A+ 21.5 inch LCD Display LCD panel | |
NOTE:
Many of the original LCDs we sell are discontinued models and USED(Grade A+) Please confirm it with us before buying if you need 100% new screens only.
All items would be tested before shipping. Please contact us immediately if the item's damaged when you receive it. Thank you!
Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
Shipping and Package :
Shipping :
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
IMPORTANT*
PLEASE CONTACT US WHEN YOU DON'T RECEIVE YOUR PARCELS IN 30 DAYS. Parcels would be returned if unclaimed in 15-30 days.
We use the fastest shipping service according to the freight you pay, Delivery in 7-15 days to most European, North American and Asian countries. Up to 30-45 days in other countries. Express shipping services available(DHL/FEDEX/TNT/ARAMEX/UPS)
DHL / FEDEX / UPS services are available. Please contact us for details if they are not listed in the shipping methods.
FAQ:
Q: Can You declare my order of HM215WU1-500 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of HM215WU1-500 ?
A: 90days warranty .
Q: How do you ship my goods HM215WU1-500 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
