Innolux AT070TN92 7 Inch LCD Touch Panel 500cd/M2 High Brightness Resistive Touch
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | AT070TN90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AT070TN90 | Diagonal Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 (WVGA) 134PPI | Active Area: | 154.08 × 85.92 (H×V) |
| Outline Dim.: | 162.53 × 96.62 × 1.43 (H×V×D) | View Direction: | 6 O'clock |
| Color Depth: | 16.7M | Designed For: | Digital Photo Frame Portable DVD Player |
| High Light: | AT070TN92 LCD Touch Panel,500cd/m2 LCD Touch Panel,Resistive Touch LCD Touch Panel |
||
Product Description

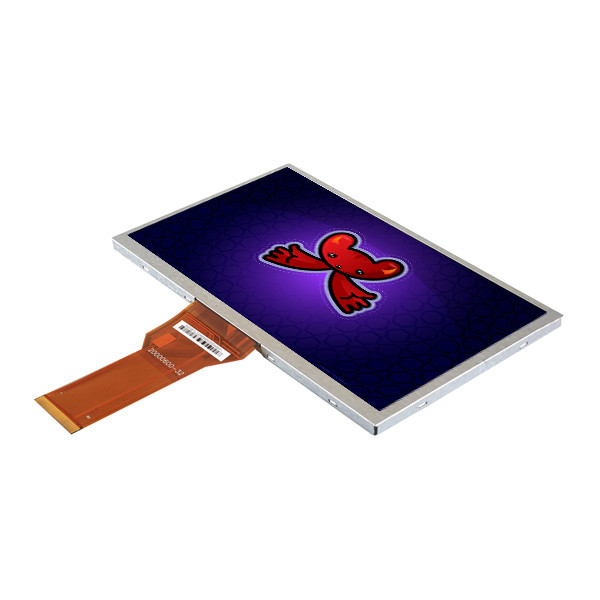

Innolux AT070TN92 800x480 500cd/m2 High Brightness Resistive Touch 7 inch LCD Panel
Product details :
| Innolux LCD SCREEN AT070TN90 | |
| Manufacturer | Innolux |
| Model Name | AT070TN90 |
| Screen Size | 7.0 inch |
| Screen Type | a-Si TFT-LCD , CELL |
| Pixel Number | 800(RGB)×480 (WVGA) 134PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 154.08 × 85.92 (H×V) |
| Outline(mm) | 162.53 × 96.62 × 1.43 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 0 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.11% (Typ.)(with Polarizer) |
| Color Depth | 16.7M |
| Backlight | No B/L |
| Mass | 45.0g (Typ.) |
| Used for | Digital Photo Frame Portable DVD Player |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG 1 source + 1 gate chips |
| Signal Type | Parallel RGB (1 ch, 8-bit) , FPC 50 pins |
| Voltage Supply | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Innolux AT070TN92 800x480 500cd/m2 High Brightness Resistive Touch 7 inch LCD Touch Panel | |
Welcome to our Shop:
If you need more quantity or more products,Please contact us.
Payment:
1.We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2.If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3
Shipment:
1.- We can ship the products all the world.Free shipping by post air mail.
2.- DHL, FedEx, TNT, UPS, EMS, aliexpress standared shipping are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you make a order.
5.- You can track the situation of your product website after they are shipped out.
Warranty:
1.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).returns if parts that have been used the machines will not be acceptable.
2.- Once we get the returned items, we will send the replaced ones back as soon as possible.
3.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation the parts.
FAQ:
Q: Can you test the lcd panel AT070TN90 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order AT070TN90?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order AT070TN90 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd AT070TN90 ?
A: 90 days .
Please note:
We test all products before sending. But we can't control everything, and the screen is easily damaged during transportation. So please test the product before installation. If you find some problems, please do not install and contact us. If you have not tested the installation, we will not provide after-sales service and refund service. We are not responsible for all problems that occur during the installation process.
