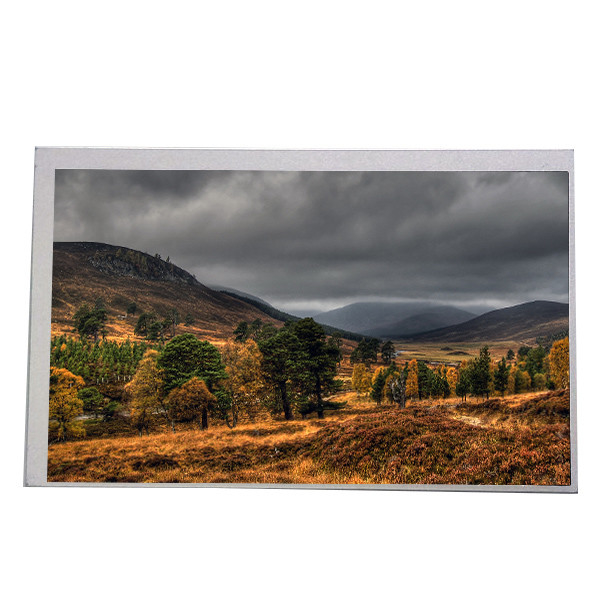

7inch 800x480 60pin RGB TFT LCD Screen AT070TN84 V.1 LCD Display Screen For Car Navigation
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |

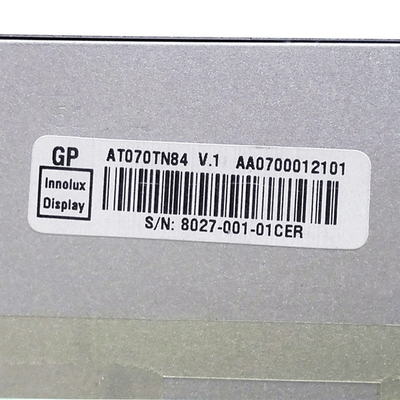

| Model Number: | AT070TN84 V.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AT070TN84 V.1 | Diagonal Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 (WVGA) 133PPI | Active Area: | 152.4 × 91.44 (H×V) |
| Outline Dim.: | 165 × 104 × 6.3 (H×V×D) | View Direction: | 6 O'clock |
| Color Depth: | 262K | Designed For: | Automotive Display Digital Photo Frame Portable DVD Player |
| High Light: | Car Navigation TFT LCD screen,AT070TN84 V.1 TFT LCD screen,60pin RGB LCD display screen |
||
Product Description
7inch 800x480 60pin RGB TFT LCD screen AT070TN84 V.1 LCD display scree
Product details :
| Innolux LCD SCREEN AT070TN84 V.1 | |
| Manufacturer | Innolux |
| Model Name | AT070TN84 V.1 |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Outline(mm) | 165 × 104 × 6.3 (H×V×D) |
| Bezel Area(mm) | 155.2 × 94.2 (H×V) |
| Treatment | Antiglare |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 3S9P WLED , 20K hours , No Driver |
| Mass | TBD |
| Used for | Automotive Display Digital Photo Frame Portable DVD Player |
| Touchscreen | Without |

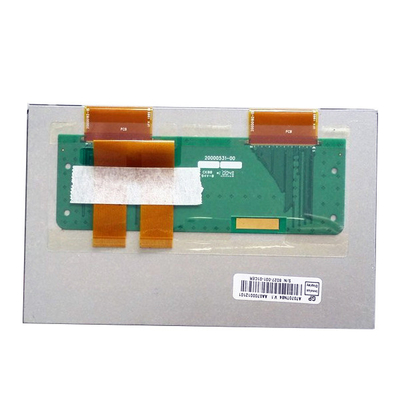

| Signal Type | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| Voltage Supply | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| 7inch 800x480 60pin RGB TFT LCD screen AT070TN84 V.1 LCD display screen for Car Navigation | |
Welcome to our Shop:
If you need more quantity or more products,Please contact us.
Payment:
1.We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW.
2.If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3
Shipment:
1.- We can ship the products all the world.Free shipping by post air mail.
2.- DHL, FedEx, TNT, UPS, EMS, aliexpress standared shipping are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you make a order.
5.- You can track the situation of your product website after they are shipped out.
Warranty:
1.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).returns if parts that have been used the machines will not be acceptable.
2.- Once we get the returned items, we will send the replaced ones back as soon as possible.
3.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation the parts.
FAQ:
Q: When will my order 7.0 inch lcd panel AT070TN84 V.1 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 7.0 inch lcd panel AT070TN84 V.1 before shipping?
A: Don't Worry , The AT070TN84 V.1 was tested ok before shipping
Q: What happen if AT070TN84 V.1 I received can't work ?
A: The AT070TN84 V.1 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
