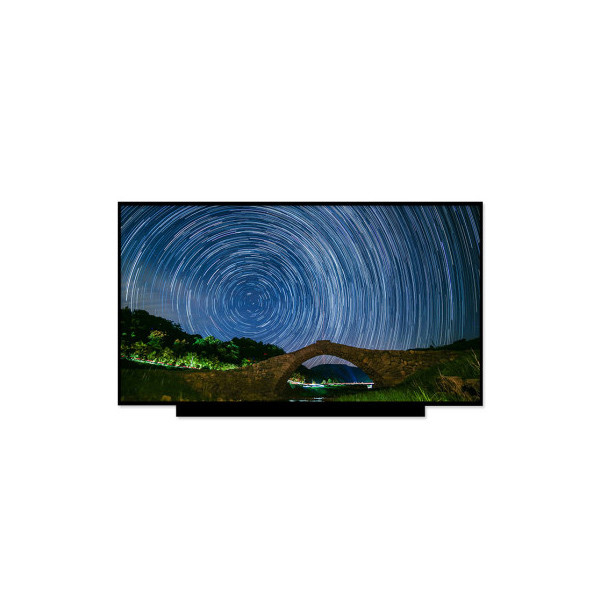

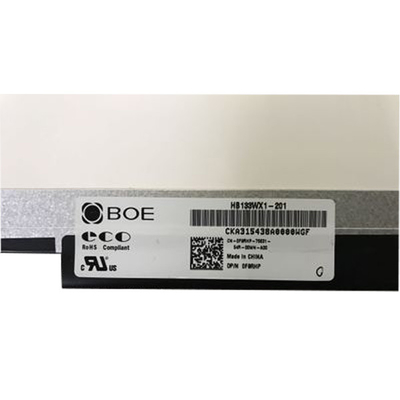

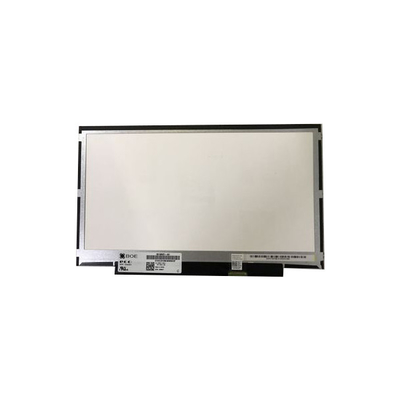

BOE 13.3 Inch Laptop Screen HB133WX1-201 RGB 1366X768 LCD Displays Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | HB133WX1-201 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HB133WX1-201 (BOE05DF) | Diagonal Size: | 13.3 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 [WXGA] 118PPI | Active Area: | 293.42(H)×164.97(V) Mm |
| Outline Dim.: | 314.1(H)×188.75(V) ×3.6(D) Mm | View Direction: | 6 O'clock |
| Form Style: | Flat (PCBA Flat, T3.4~4.0mm) | Designed For: | Laptop |
| High Light: | BOE 13.3 inch laptop screen,RGB 13.3 inch laptop screen,HB133WX1-201 LCD Displays Module |
||
Product Description
BOE 13.3 inch laptop screen HB133WX1-201 lcd monitors 1366(RGB)×768 lcd displays module
Product details :
| BOE LCD SCREEN HB133WX1-201 (BOE05DF) | |
| Manufacturer | BOE |
| Model Name | HB133WX1-201 (BOE05DF) |
| Screen Size | 13.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 118PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.42 × 164.97 (H×V) |
| Outline(mm) | 314.1 × 188.75 × 3.6 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 12(Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 9S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , eDP1.2 , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE 13.3 inch laptop screen HB133WX1-201 lcd monitors 1366(RGB)×768 lcd displays module | |
