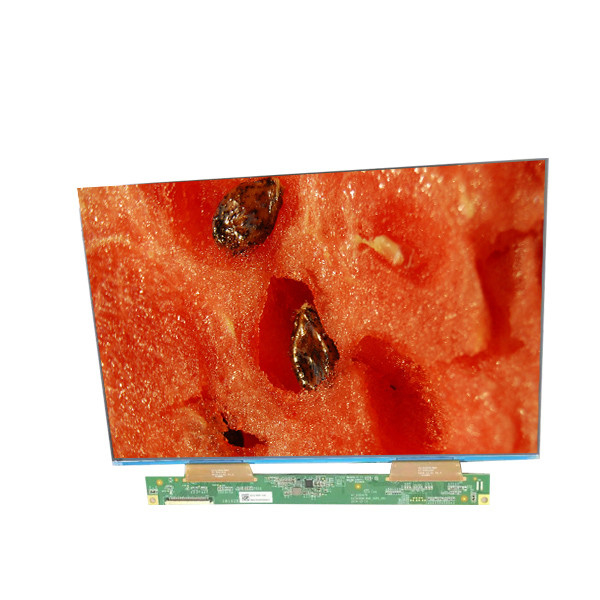

10.1 Inch Industrial LCD Panel Display GV101WXB-NN0-3GP0 LCD Monitors Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | GV101WXB-NN0-3GP0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | GV101WXB-NN0-3GP0 | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×800 (WXGA) 149PPI | Active Area(mm): | 216.96 × 135.6 (H×V) |
| Outline(mm): | 221.96 × 144.43 × 1.06 (H×V×D) | Luminance: | 0 Cd/m² |
| Driver IC List: | Built-in COG 2 Source Chips | Application: | Industrial |
| High Light: | LVDS Industrial LCD Panel Display,Symmetry Industrial LCD Panel Display,GV101WXB-NN0-3GP0 LCD Monitors Screen |
||
Product Description
10.1 inch GV101WXB-NN0-3GP0 LCD Monitors Screen Display
Product details :
| BOE LCD SCREEN GV101WXB-NN0-3GP0 | |
| Manufacturer | BOE |
| Model Name | GV101WXB-NN0-3GP0 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 216.96 × 135.6 (H×V) |
| Outline(mm) | 221.96 × 144.43 × 1.06 (H×V×D) |
| Treatment | Without Polarizer, Hard coating |
| Luminance | 0 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 35(Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | No B/L |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , Connector 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 10.1 inch GV101WXB-NN0-3GP0 LCD Monitors Screen Display | |
Our features are:
1. Original quality guarantee.
2. Superior After-Sale service;
3. The most competitive prices here can provide;
4. Small order quantity accepted.
5. Offer 12 months of warranty;
6. Experienced staff can help you to solve your problem anytime.
With wide range, superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia. And our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Payment:
1.We will send out the order within 1-3 days after confirming the payment.
2.You can choose DHL/TNT for fast shipping
3.We 100% tested one by one before shipping .If the product is faulty during shipping, please inform us immediately after your received it.
4.Our products have good apperance and function.You can place your order with 100% assurance.I promise all of my products work!!!
5.The products are of the highest quality,so if you are not happy with an item you have purchased,please contact our Customer Service Team .As soon as possible.We will be able to assist you with any returns and refunds based on the condition of the item.
Shipping and Package :
About Shipping:
- We are not able to take any responsibility for any custom delay or tax. Import duties, taxes and charges are not included in the item price or shipping charges.
- We strive our best to provide you the most reliable, affordable way of shipping service.But sometimes international delivery is highly depended on the courier company and local customs/duties.
- If you do not receive your item on time, please contact us immediately for further assistance.
Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
FAQ:
Q: How long is the warranty of GV101WXB-NN0-3GP0 ?
A: 90 days warranty .
Q: How can I trace my order of BOE GV101WXB-NN0-3GP0 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can You declare my order of lcd panel GV101WXB-NN0-3GP0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of GV101WXB-NN0-3GP0 ?
A: Of course!If you make a large order, we will give you a discount.
