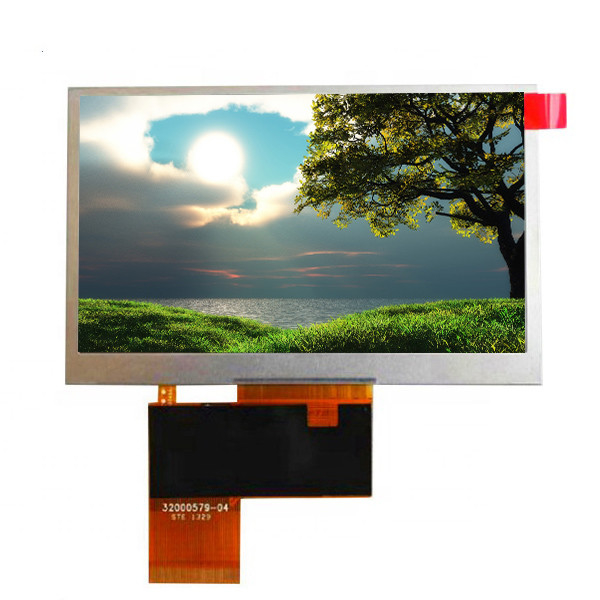

5 Inch LCD Screen Module AT050TN33 V.1 480x272 For MP3 / PMP
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | AT050TN33 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | AT050TN33 | Panel Size: | 5 Inch |
|---|---|---|---|
| Pixel Number: | 480(RGB)×272 (WQVGA) 109PPI | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) |
| Used For: | Portable Navigation MP3 PMP | Color Depth: | 16.7M 50% NTSC |
| High Light: | PMP LCD Screen Module,AT050TN33 V.1 LCD Screen Module,Antiglare LCD Screen Module |
||
Product Description
5 inch LCD Module AT050TN33 V.1 480*272 Applied to Mp3 and PMP
Product details :
| Innolux LCD SCREEN AT050TN33 | |
| Manufacturer | Innolux |
| Model Name | AT050TN33 |
| Screen Size | 5.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 480(RGB)×272 (WQVGA) 109PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 110.88 × 62.832 (H×V) |
| Outline(mm) | 120.7 × 75.8 × 4.45 (H×V×D) |
| Bezel Area(mm) | 113.90 × 65.85 (H×V) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 6S2P WLED , 20K hours , No Driver |
| Mass | 83.0g (Typ.) |
| Used for | Portable Navigation MP3 PMP |
| Refresh Rate | 60Hz |
| Touchscreen | 4-wire Resistive Touch, F/G |
| Signal Type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Voltage Supply | 3.3V (Typ.)(VCC) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| 5 inch LCD Module AT050TN33 V.1 480*272 Applied to Mp3 and PMP | |
Payment:
1. We accept T/T(bank transfer), Western Union, Paypal for now.
2. Choosing Paypal need to pay extra 3% of total amount as handling charge.
3. If you have any problems of payment, please contact us freely.
Packaging and Delivery:
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Shipment:
1.The goods will be shipped within 1-2 working days after payment is received.
2. The goods can be shipped by DHL, FedEx, UPS,EMS ,TNT, DPEX, ARAMEX, Registered post, Air or your shipping agent. Please choose the shipment method you prefer.
3. The buyer is responsibel for any tax or duty charged by their country.
Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
FAQ:
Q: Do you accept sample orders of AT050TN33 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of AT050TN33 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of AT050TN33 ?
A: The order will be shipped within 2-3 working days after received your payment.
