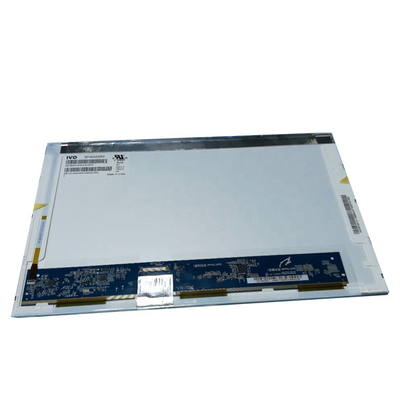

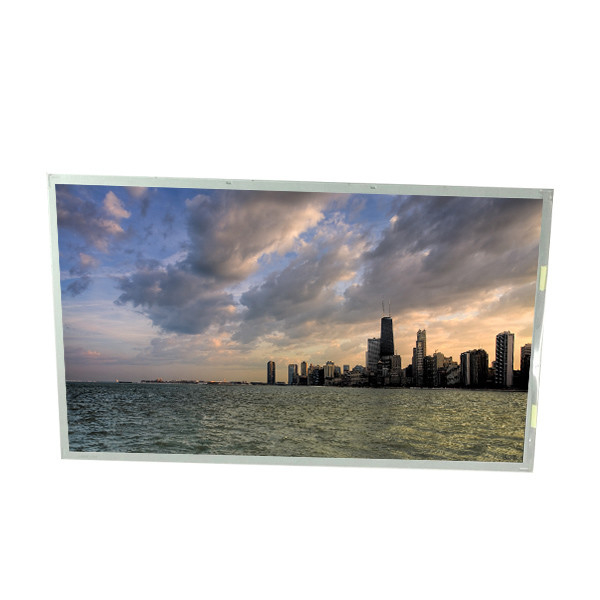

IVO 14.0 M140NWR2 R1 LCD Screen Display LVDS 40Pins 1366X768 For Lenovo G400 G400AM G400AT
Product Details:
Place of Origin: | China |
Brand Name: | IVO |
Model Number: | M140NWR2 R1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Panel Model: | M140NWR2 R1 | Panel Size: | 14 Inch |
---|---|---|---|
Pixel Number: | 1366(RGB)×768 (WXGA) 112PPI | Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) |
Used For: | Laptop | Color Depth: | 262K 45% NTSC |
High Light: | M140NWR2 R1 LCD Screen Display,LVDS LCD Screen Display,IVO LCD Screen Display |
Product Description
M140NWR2 R1 IVO 14.0 LVDS 40Pins 1366*768 LCD Glossy
Product details :
IVO LCD SCREEN M140NWR2 R1 | |
Manufacturer | IVO |
Model Name | M140NWR2 R1 |
Screen Size | 14.0 inch |
Screen Type | LCM , a-Si TFT-LCD |
Pixel Number | 1366(RGB)×768 (WXGA) 112PPI |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 309.399 × 173.952 (H×V) |
Outline(mm) | 323.5 × 192 × 5.2 (H×V×D) |
Bezel Area(mm) | 312.40 × 176.95 (H×V) |
Treatment | Glare (Haze 0%), Hard coating |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Min.) (TM) |
Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
Response | 8 (Typ.)(Tr+Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K 45% NTSC |
Backlight | WLED , 12K hours , With LED Driver |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
For Lenovo G400 G400AM G400AT LCD Screen Display M140NWR2 R1 IVO 14.0 LVDS 40Pins 1366*768 LCD Glossy |
Payment:
1. We accept T/T(bank transfer), Western Union, Paypal for now.
2. Choosing Paypal need to pay extra 3% of total amount as handling charge.
3. If you have any problems of payment, please contact us freely.
Packaging and Delivery:
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Shipment:
1.The goods will be shipped within 1-2 working days after payment is received.
2. The goods can be shipped by DHL, FedEx, UPS,EMS ,TNT, DPEX, ARAMEX, Registered post, Air or your shipping agent. Please choose the shipment method you prefer.
3. The buyer is responsibel for any tax or duty charged by their country.
Return/Refund :
1.We provide different warranty for different products.
2. Please inform us within 7 days if you receive any defective goods from us. The returned items has to be its original condition to qualify for a refund or replacement.
FAQ:
Q: Can You declare my order of M140NWR2 R1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of M140NWR2 R1 ?
A: 90days warranty .
Q: Do you accept sample orders for M140NWR2 R1 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of M140NWR2 R1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
