48 Inch Stretched Bar LCD Panel DV480FBM-N01 RGB 3840X720 81PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV480FBM-N01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | DV480FBM-N01 | Panel Size: | 48" (Native Bar) |
|---|---|---|---|
| Resolution: | 3840(RGB)×720, 81PPI | Display Area: | 1194.05(W)×223.884(H) Mm |
| Outline Size: | 1217.85(W)×248.18(H) ×30.58(D) Mm | Display Colors: | 1.07B 75% NTSC |
| Panel Weight: | 3.7Kgs (Typ.) | Application: | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
| High Light: | Stretched bar lcd panel,48 Inch Stretched bar lcd panel,DV480FBM-N01 Stretched bar lcd panel |
||
Product Description

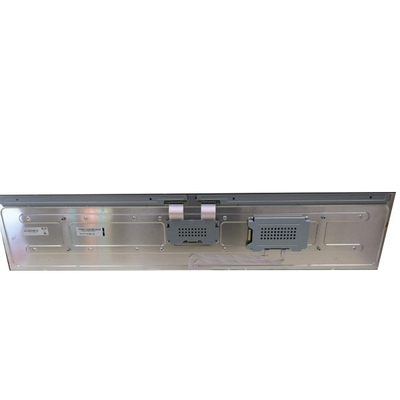

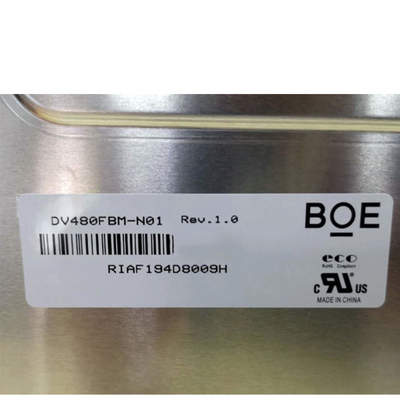

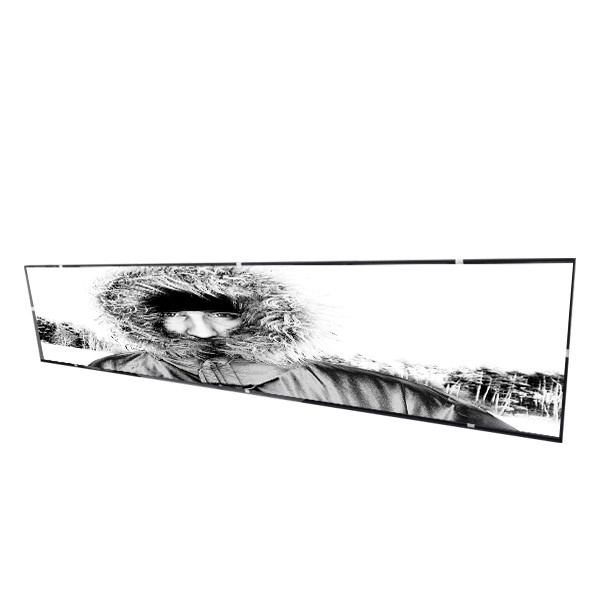

BOE New and original 48 inch Stretched Bar LCD panel DV480FBM-N01 with 3840(RGB)×720 Stretched Bar LCD panel
Product details :
| BOE LCD SCREEN DV480FBM-N01 | |
| Manufacturer | BOE |
| Model Name | DV480FBM-N01 |
| Screen Size | 48 inch (Native bar) |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×720 81PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 1194.05 × 223.884 (H×V) |
| Outline(mm) | 1217.85 × 248.18 × 30.58 (H×V×D) |
| Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Luminance | 1000cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 10 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 1.07B 75% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 3.7Kgs (Typ.) |
| Used for | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | V-by-One 8 lane , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE New and original 48 inch Stretched Bar LCD panel DV480FBM-N01 with 3840(RGB)×720 Stretched Bar LCD panel | |
Application:
Desktop type of PC and Workstation use ,Slim-size display for stand-alone monitor, Display terminals for control system,Monitors for prosess controller,etc.
