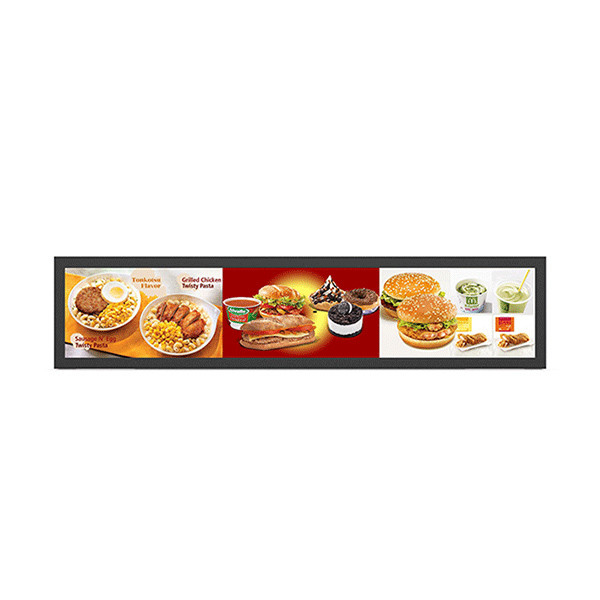

BOE 29.0 Inch Advertising LCD Bar Screen DV290FBM-N10 1920x540 IPS 51PIN LVDS Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | DV290FBM-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | DV290FBM-N10 | Panel Size: | 29.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×540, 69PPI | Display Area: | 705.6(W)×198.45(H) Mm |
| Outline Size: | 720.8(W)×226.25(H) Mm | Bezel Opening: | 709.6(W)×202.45(H) Mm |
| Weight: | 2.15±0.1Kgs | Application: | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
| High Light: | lcd bar screen DV290FBM-N10,29.0 inch lcd bar screen,LVDS Interface lcd bar screen |
||
Product Description
BOE 29.0 inch bar screen advertising machine DV290FBM-N10 1920*540 IPS 51PIN LVDS interface
Product details :
| BOE LCD SCREEN DV290FBM-N10 | |
| Manufacturer | BOE |
| Model Name | DV290FBM-N10 |
| Screen Size | 29.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×540 69PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 705.6 × 198.45 (H×V) |
| Outline(mm) | 720.8 × 226.25 (H×V×D) |
| Bezel Area(mm) | 709.6 × 202.45 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 15(Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | HADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 50K hours , No Driver |
| Mass | 2.15±0.1Kgs |
| Used for | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE 29.0 inch bar screen advertising machine DV290FBM-N10 1920*540 IPS 51PIN LVDS interface | |
Guarantee:
1. Insurance for 180 days
2. Product warranty return shipping by the buyer is responsible for.
3. We have to return the item, we will be replaced as soon as possible.
4. Physical damage our warranty does not include any product or the United Nations under normal operating conditions, due to misuse or improper installation of the part.
Noted (please read it before make a order):
1. First make sure that your address is correct
2. The tracking number of China Post Ordinary Small Packet Plus/Cainiao Super Economy/ Cainiao Super Economy Global only can track the goods have left China or not.There will be no more information after it leave China.
3. Before sign for the parcel, please check the parcel is filled with product
4. Welcome to send us your RFQ or BOM list, we will give you our best price!
You can leave us message or send email, we will reply you asap!
Shipping and Package :
About Shipping:
1. Items are only shipped after PAYMENT is received.
2.Please check out your ADDRESS carefully when processing order.
3.Please CONTACT us ASAP if you haven't received the package in 30 days.
4.If you haven't received the parcel in 45 days, please aollow us 3-5 working days for checking undelivered packages before we issue you refund.
5. We can't ship to African countries except South Africa because of shipping company policy.
Warranty:
1. We provide 3 months warranty.
2.Buyers are only responsible for the retum shipping fees for warranty items.(In most cases, buyer will only have to return the problem components rather than the entire package).
3. Before retuming items, please make sure you get to our returm address, and write "gift" on the delivery sheet. Please use regular postal service and sand us the tracking number. As soon as we receive the items,we will repair of exchange them ASAP.
4.We do not assume any custom risk, ifit easily cause any cuse any custom problem in your country we recommend you choose other shipping methods, just like China Post Air.If you have other need, pls.feel free to contact us any time.
FAQ:
Q: How can I trace my order of DV290FBM-N10 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods DV290FBM-N10 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods DV290FBM-N10 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Do you accept sample orders for DV290FBM-N10 ?
A: Of course!sample order is welcome !
